Overview

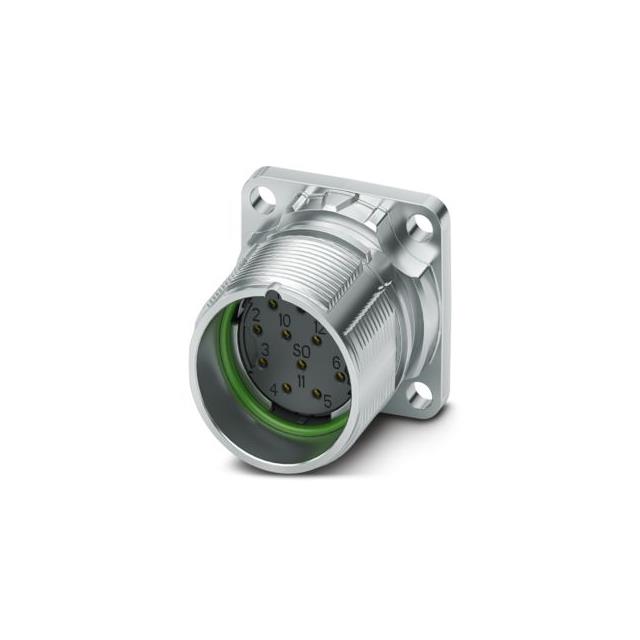

Phoenix Contact part number 1543924 corresponds to the M23-12S2N12WB00S device connector. This is a straight, shielded circular connector assembly designed for front mounting on equipment panels. The component features a socket configuration with 12 positions and utilizes crimp contacts for signal applications. It supports standard and ONECLICK fast locking systems. The housing includes standard contact chamber numbering, and the insert color varies by specification.

Feature Summary

• Straight design for direct panel mounting
• Shielded construction for signal integrity
• Compatible with ONECLICK fast locking system

Applications

• Signal transmission in industrial equipment
• Front panel mounting for control units
• M23 series device interconnections

Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm contact type and locking mechanism. Ensure the ordering code matches the required shielding and mounting style. Cross-reference the Phoenix Contact part number with the equivalent M23-12S2N12WB00S designation to confirm technical compatibility before procurement.

Selection Notes

Select this component for applications requiring a straight, shielded M23 connector with front panel mounting capabilities. Confirm that the 12-position layout meets the circuit requirements. Verify compatibility with the ONECLICK locking system if rapid installation is necessary. Ensure the crimp contact insert aligns with the wire gauge specifications of the application.

Part Context

This component belongs to the Phoenix Contact M23 PRO series of device connectors. The series is engineered for robust industrial environments, offering reliable signal transmission through shielded circular interfaces. The M23 form factor provides high pin density within a compact mechanical footprint suitable for dense panel layouts.

Replacement Considerations

The part is functionally equivalent to Phoenix Contact model M23-12S2N12WB00S. Verify that any substitute maintains the same 12-pin count, straight orientation, and shielded characteristics to ensure mechanical and electrical continuity.
