1543936

Overview

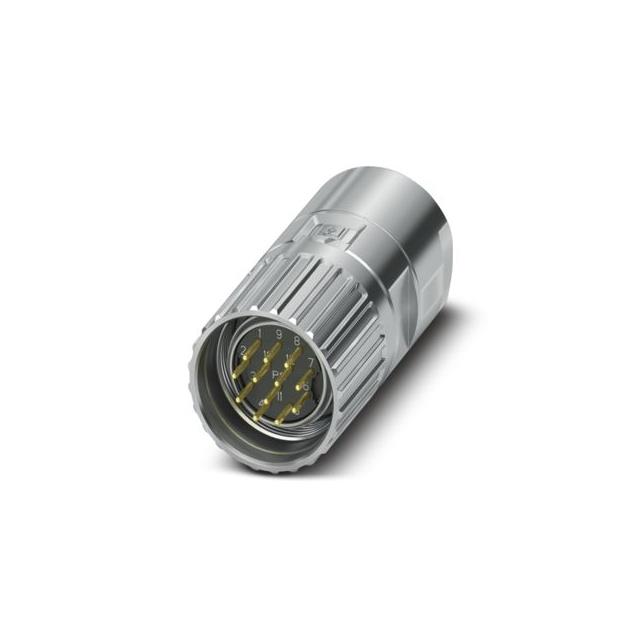

Phoenix Contact part number 1543936, model M23-12P2N128004S, is a straight cable connector from the M23 PRO series. It features 12 signal positions with ONECLICK fast locking and counter-directional rotation. The connector is shielded and designed for soldering termination. Signal contacts have a diameter of 1 mm and support litz wires with a minimum cross-section of 0.08 mm².

Feature Summary

• ONECLICK fast locking system for secure connection
• Shielded design for signal applications
• Straight orientation for cable mounting

Applications

• Industrial signal transmission
• Automation control systems
• Sensor and actuator connections

Procurement Notes

Verify the exact part number 1543936 against Phoenix Contact official documentation to ensure compatibility with M23 PRO series requirements. Confirm that the ONECLICK locking mechanism and soldering termination meet your specific assembly standards before procurement.

Selection Notes

Select this component when a shielded M23 connector with 12 positions is required for signal applications. Ensure the mating interface supports the ONECLICK locking system and that the cable preparation accommodates the specified contact diameter and wire cross-section limits.

Part Context

This connector belongs to the M23 PRO series by Phoenix Contact, designed for robust industrial environments. The M23 standard provides high density and reliable performance for signal and power applications in automation and machinery sectors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Phoenix Contact technical support for compatible alternatives if this specific configuration is unavailable.

FAQ

What type of locking system does this connector use?

It uses the ONECLICK fast locking system.

Is this connector shielded?

Yes, the M23-12P2N128004S is shielded.
