Product Detailed Parameters
- Description：Interconnect Misc
- Series：*
- Mfr：Phoenix Contact
- Package：Bulk
Download product information
Overview

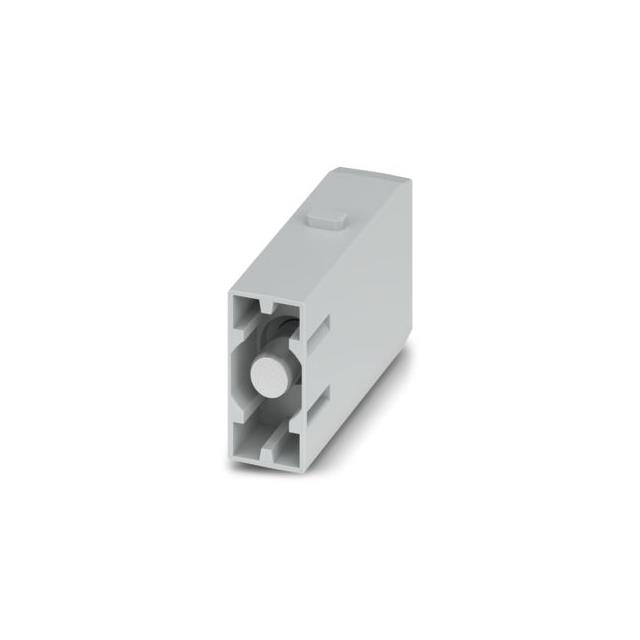

Phoenix Contact part number 1544116 is a HC-M-01-PT-M-16 contact insert module designed for HEAVYCON connectors. It features a single power pin configuration with push-in termination technology. The module supports wire cross-sections from 2.5 mm² to 16 mm² and operates at a maximum voltage of 830 V with a current capacity of 76 A. Constructed with silver-plated contacts and polycarbonate housing, it ensures reliable electrical connections in industrial environments.
Feature Summary
- Push-in connection system for rapid and tool-free wiring installation
- High current carrying capacity suitable for heavy-duty power applications
- Robust polycarbonate housing material providing mechanical stability
Applications
- Industrial power distribution systems
- Heavy machinery electrical interfaces
- Control cabinet internal wiring modules
Procurement Notes
Verify the specific order code HC-M-01-PT-M-16 matches the required pin count and termination style. Confirm that the application voltage does not exceed 830 V and current requirements are within the 76 A limit. Ensure compatibility with the intended HEAVYCON housing series before procurement.
Selection Notes
Select this component when a single-way power insertion is needed for HEAVYCON housings. The push-in termination is preferred over screw terminals for faster assembly. Verify that the wire gauge falls between 2.5 mm² and 16 mm² to ensure proper contact engagement and safety compliance.
Part Context
This contact insert is part of the Phoenix Contact HEAVYCON modular connector family. It is designed to snap into compatible HEAVYCON H-B6 through H-B48 housing frames. The module allows for flexible configuration of power and signal connections within robust industrial connector systems.
Replacement Considerations
Direct substitutes must match the HC-M-01-PT-M-16 designation. Verify identical pin count, termination type, and current rating. Cross-referencing with Phoenix Contact's official replacement guide is recommended to ensure functional equivalence.
