1544117

Overview

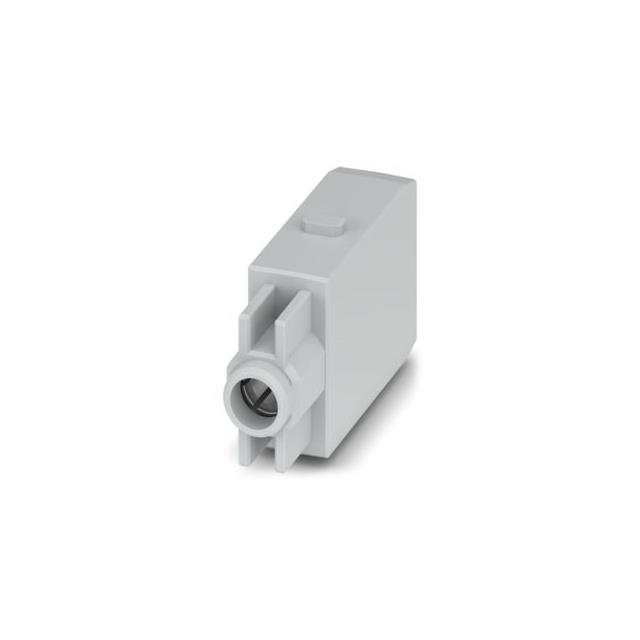

The Phoenix Contact 1544117 is a modular insert for the HEAVYCON HC-B6 to B48 high-profile housing and click-in modular frame. It features one power pin with a turning contact type, designed for direct plug connection. The unit supports conductor cross-sections from 2.5 mm² to 16 mm² (AWG 14 to 6). Rated voltage is 830 V under category III/3 conditions and 1000 V under III/2. It carries an 8 kV rated overvoltage and handles a nominal current of 76 A. The module meets UL 94 V0 flammability standards.

Feature Summary

• Designed for use in HEAVYCON HC-B6 to B48 high-profile housings and click-in modular frames.
• Supports direct plug connection technology for rapid assembly without additional tools.
• Features silver-plated copper alloy contacts for reliable electrical conductivity.
• Complies with overvoltage category III and pollution level 3 requirements.

Applications

• Power supply connections
• Industrial automation systems
• Heavy-duty connector assemblies

Procurement Notes

Verify that the specific application requires a single-position power insert compatible with the HEAVYCON HC-B series. Confirm that the mating housing utilizes the high-profile design and click-in frame mechanism. Ensure the wiring specifications align with the supported conductor range of 2.5 mm² to 16 mm². Check that the operating environment meets the required overvoltage category and pollution level ratings.

Selection Notes

Select this component when a single high-current power connection is needed within a modular heavy-duty system. It is suitable for applications requiring robust mechanical stability and high current carrying capacity. Consider the direct plug connection feature for simplified assembly processes. Ensure the overall connector size matches the available space constraints for the HC-B6 to B48 housing variants.

Part Context

This part belongs to the HC-M-01 series of modular inserts manufactured by Phoenix Contact. These inserts are engineered to be combined with various HEAVYCON connector housings to create customized connection solutions. The series allows for flexible configuration of power and control circuits within industrial environments requiring high durability.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
