1544120

Overview

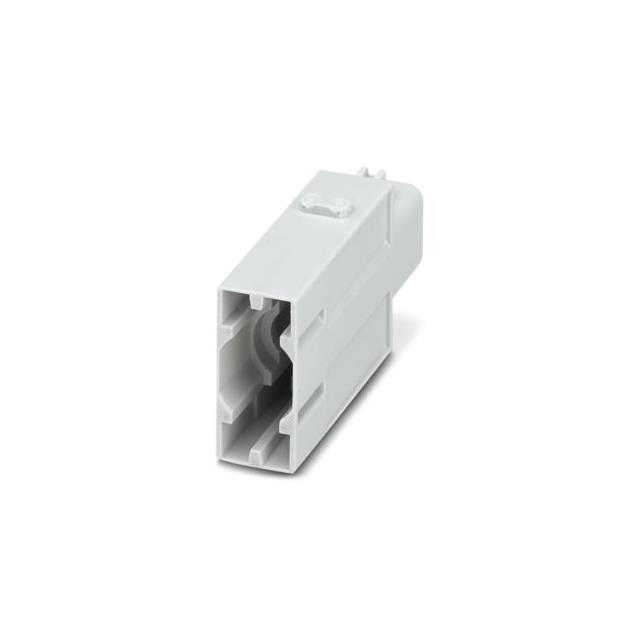

The Phoenix Contact 1544120 is a heavy-duty power connector insert module, specifically the HC-M-01-CT-M-35 variant. It features a male pin configuration with one power position and zero control positions. Designed for crimp connections, it supports wire cross-sections from 10 mm² to 35 mm². The component is rated for 830 V voltage and 100 A current. It includes gold-plated contacts and meets UL94 V-0 flammability standards.

Feature Summary

• Male pin contact insert designed for heavy-duty power applications
• Crimp connection type supporting large wire cross-sections up to 35 mm²
• Gold-plated contacts ensure reliable electrical performance
• UL94 V-0 rated housing material for fire safety compliance

Applications

• Industrial power distribution systems
• Heavy machinery electrical connections
• High-current circuit integration in enclosures

Procurement Notes

Verify the specific suffix M-35 confirms the 10-35 mm² wire range. Ensure compatible mating housings are selected separately as this is an insert module only. Confirm contact plating specifications match environmental requirements. Cross-reference datasheet revision dates for updated mechanical dimensions.

Selection Notes

Select this module when high current capacity of 100 A is required. Ensure the application utilizes crimp termination methods rather than soldering. Verify that the mating connector system supports the HC-M series form factor. Check insulation clearance requirements against the 830 V rating.

Part Context

This part belongs to the Phoenix Contact HC-M series of heavy-duty connector inserts. These modules are designed to be installed into corresponding metal or plastic housings to create complete connector assemblies. The series offers modular flexibility for various power and signal configurations.

Replacement Considerations

Direct substitutes must match the HC-M-01-CT-M-35 designation. Verify identical current ratings and wire gauge compatibility. Ensure physical dimensions align with existing mounting constraints. Consult manufacturer cross-reference lists for verified equivalents.
