Headers, Receptacles, Female Sockets Overview

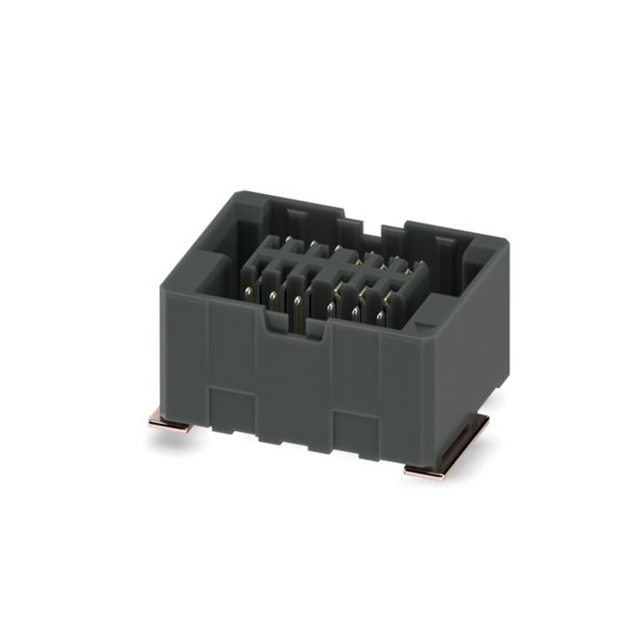

The Phoenix Contact 1545216 is an SMD female connector from the FINEPITCH series, designed for board-to-board and mezzanine applications. It features a 0.8 mm pitch with 12 positions and black UL94 V-0 housing. The contacts are gold-plated sockets rated for a nominal current of 1.7 A and a test voltage of 500 V AC. Operating temperature ranges from -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• SMD mounting for automated surface-mount assembly
• Gold-plated female socket contacts for reliable signal transmission
• Black UL94 V-0 flammability rating housing material

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• Mezzanine card connections
• Mother-daughter card configurations

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix 'SL 4,85' against your design requirements, as it indicates the stack height or mating partner dimension. Confirm that the 12-position configuration matches your PCB footprint. Ensure the supplier provides original manufacturer documentation to validate the active status and RoHS compliance before finalizing procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 0.8 mm pitch female connector is required for compact electronic designs. The 1.7 A current rating suits low-power signal transmission rather than high-current power distribution. Consider the 500 V AC test voltage for insulation requirements. Verify compatibility with the corresponding male connector in the same FINEPITCH series.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Phoenix Contact FINEPITCH product range, which offers shielded and unshielded solutions for signal and data transmission. The series supports various PCB orientations, stack heights, and position counts with pitches ranging from 0.635 mm to 1.27 mm, enabling flexible implementation of individual PCB designs.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the Phoenix Contact Cross Reference Search for suitable alternatives from other manufacturers. No direct substitute part numbers are confirmed in the provided public documentation.
