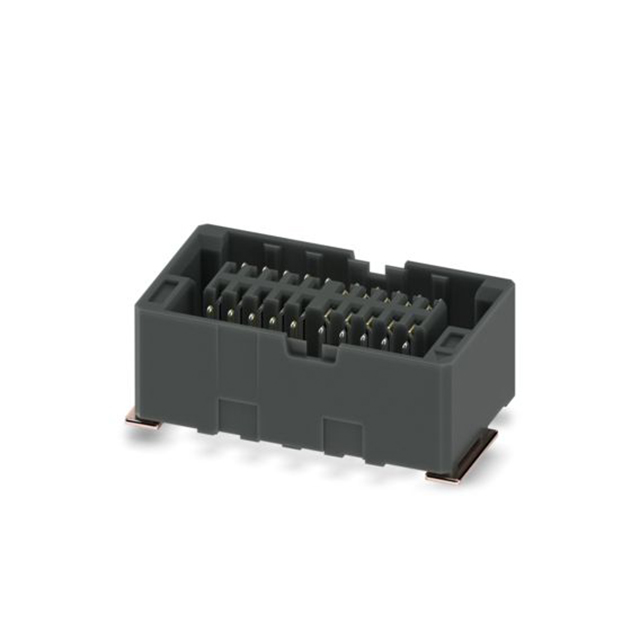

1545219 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Phoenix Contact. Its product description is CONN HEADER 0.8MM 20POS SMD. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 1545219
- Description：CONN HEADER 0.8MM 20POS SMD
- Series：FP
- Mfr：Phoenix Contact
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：20
- Number of Positions Loaded：All
- Pitch - Mating：0.031" (0.80mm)
- Number of Rows：2
- Row Spacing - Mating：0.056" (1.42mm)
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：0.189" (4.80mm)
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin
- Mated Stacking Heights：6mm, 7.5mm, 12mm, 13.5mm
- Ingress Protection：-
- Features：Board Guide, Solder Retention
- Current Rating (Amps)：1.7A
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for 1545219
Headers, Receptacles, Female Sockets Overview
The Phoenix Contact 1545219 is a 20-position SMD female receptacle connector with a 0.8 mm pitch and gold-plated contacts. It supports a nominal current of 1.7 A and withstands a test voltage of 500 V AC. The black housing features a surface mount design for automated PCB assembly.
Headers, Receptacles, Female Sockets Feature Summary
- Surface mount receptacle configuration for direct PCB integration
- Gold contact plating ensures reliable signal transmission
- Compact 0.8 mm pitch design optimizes board space utilization
Headers, Receptacles, Female Sockets Applications
- High-density electronic assemblies requiring robust interconnects
- Industrial control systems utilizing Phoenix Contact ScaleX technology
- Data communication interfaces supporting high-speed signals up to 52Gbps
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific ordering suffix matches the required pin count and housing style. Confirm RoHS compliance status for your region. Ensure the supplier provides original manufacturer documentation to validate authenticity and traceability before finalizing procurement orders.
Headers, Receptacles, Female Sockets Selection Notes
Select this component when a low-profile, high-pin-count female connector is required for surface mount applications. The 0.8 mm pitch allows for dense circuit layouts while maintaining electrical integrity through gold-plated contacts suitable for industrial environments.
Headers, Receptacles, Female Sockets Part Context
This part belongs to the FP series of board-to-board connectors from Phoenix Contact. It utilizes the patented ScaleX contact system for enhanced durability and performance in demanding industrial automation settings, distinguishing it from standard generic connectors.
Headers, Receptacles, Female Sockets Replacement Considerations
Consult the Phoenix Contact Cross Reference Search for verified alternatives. No direct substitute part numbers are confirmed in public documentation. Verify mechanical compatibility and electrical ratings before considering any third-party equivalents.
