Headers, Receptacles, Female Sockets Overview

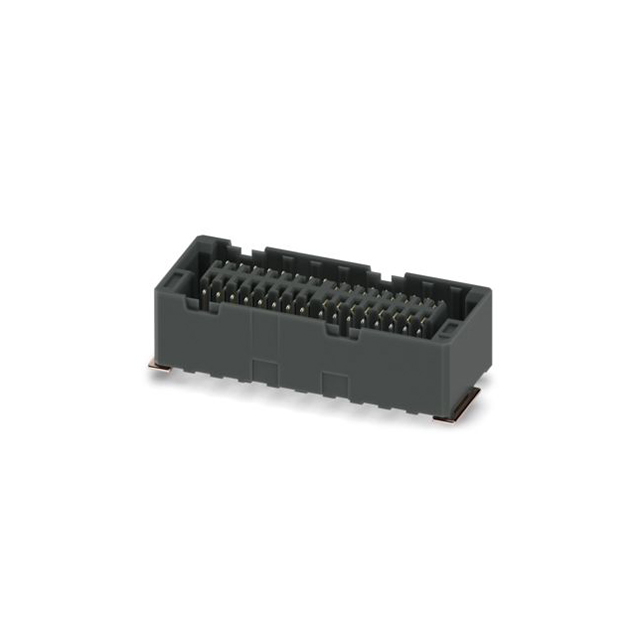

The Phoenix Contact 1545310 is a 32-position SMD female connector from the FP 0.8 series, designed for surface mount assembly on printed circuit boards. It features a 0.8 mm pitch and gold contact surfaces to ensure reliable signal transmission. The component is rated for a nominal current of 1.7 A and withstands a test voltage of 500 V AC. Its black housing provides visual identification and environmental protection.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount design for automated PCB assembly
• Gold-plated contacts for corrosion resistance
• Compact 0.8 mm pitch spacing

Headers, Receptacles, Female Sockets Applications

• Industrial control systems
• Data communication equipment
• Automotive electronics modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix matches the required pin configuration and housing length. Confirm RoHS compliance status with the supplier. Ensure storage conditions prevent moisture damage before reflow soldering. Check for counterfeit components through authorized distribution channels only.

Headers, Receptacles, Female Sockets Selection Notes

Select this part when a 32-position female header is required for space-constrained designs. The 0.8 mm pitch allows for high-density layouts. Consider the 1.7 A current rating for power distribution needs. Verify mating compatibility with corresponding male connectors in the same series.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the FP 0.8 family, which offers various position counts and configurations. It complements other Phoenix Contact board-to-board solutions. The series supports both vertical and right-angle mounting options depending on the specific model variant selected for the application.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include Phoenix Contact models 1545216 (12 positions) or 1545219 (20 positions) if fewer positions are needed. No cross-manufacturer equivalents are confirmed in public documentation.
