1545311

Headers, Receptacles, Female Sockets Overview

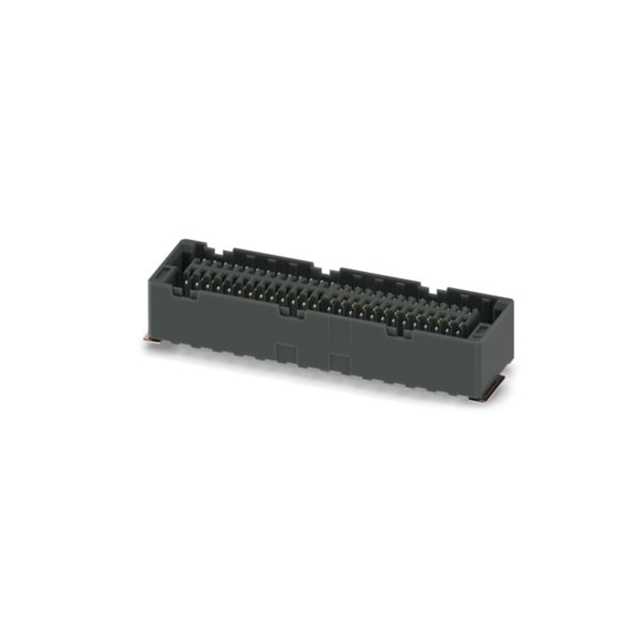

The Phoenix Contact part number 1545311 corresponds to the FP 0,8/ 52-FV-SL 4,85 SMD hole-type connector. This component utilizes ScaleX technology to support data transmission speeds up to 52 Gbps. It features a pin pitch of 4.85 mm and is designed for surface mount applications. The connector provides a current carrying capacity of 1.7 A at 20°C per contact. It is constructed with shielding capabilities (SH) to ensure signal integrity in high-speed environments.

Headers, Receptacles, Female Sockets Feature Summary

• Supports high data transmission rates up to 52 Gbps using patented ScaleX contact system
• Provides robustness, flexibility, and diversity for professional applications
• Features shielding (SH) design for enhanced signal protection

Headers, Receptacles, Female Sockets Applications

• High-speed data bus connections
• Industrial B2B connector systems
• Equipment requiring reliable high-bandwidth data transfer

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix and technical documentation before procurement. Ensure compatibility with the intended PCB layout and mating connectors. Confirm that the shielding requirements align with the application's electromagnetic interference needs. Check the latest datasheet for any updates regarding material specifications or environmental ratings.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when high-speed data integrity is critical. The 52 Gbps capability suits modern industrial communication standards. Consider the SMD mounting type for automated assembly processes. Evaluate the 1.7 A current rating against the power requirements of the connected circuits. Ensure the 4.85 mm pitch matches the board design constraints.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the FP series of connectors from Phoenix Contact. It is designed for demanding industrial environments where reliability and high performance are essential. The ScaleX technology distinguishes it from standard connectors by offering superior durability and signal quality. It fits within the broader portfolio of data transmission solutions offered by the manufacturer.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical dimensions and electrical characteristics if considering alternative components from other manufacturers.
