Headers, Receptacles, Female Sockets Overview

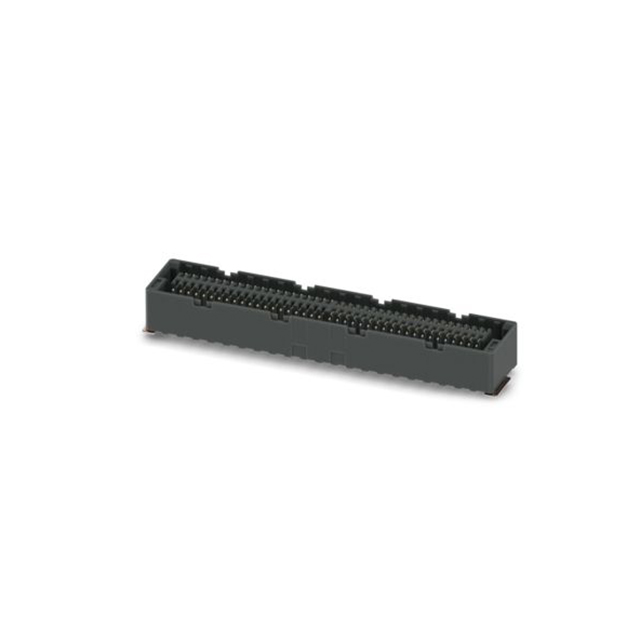

Phoenix Contact part number 1545313 is an 80-position SMD female header receptacle with a 0.8 mm pitch. It features gold-plated copper alloy contacts and a black housing. The connector supports a nominal current of 1.7 A and a test voltage of 500 V AC. Operating temperatures range from -55°C to +125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount design for automated PCB assembly
• Gold contact plating for reliable signal transmission
• High-density 80-position configuration in compact footprint

Headers, Receptacles, Female Sockets Applications

• Industrial control system interconnects
• High-density sensor interface modules
• Automated manufacturing equipment backplanes

Headers, Receptacles, Female Sockets Procurement Notes

Verify the exact position count (80) and pitch (0.8 mm) against the specific application requirements. Confirm that the surface mount termination style matches the PCB layout. Ensure the operating temperature range meets the environmental conditions of the final assembly.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high pin density is required in a surface mount form factor. The 0.8 mm pitch allows for significant I/O in limited space. Gold plating ensures durability in industrial environments requiring stable electrical connections over time.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to Phoenix Contact's FP series of SMD headers. It is designed for robust industrial applications where reliable connectivity is critical. The series offers various position counts to accommodate different circuit complexity levels.

Headers, Receptacles, Female Sockets Replacement Considerations

Check for direct substitutes within the same FP series family, such as part number 1545310 which shares similar characteristics but differs in position count. Verify mechanical compatibility before substitution.
