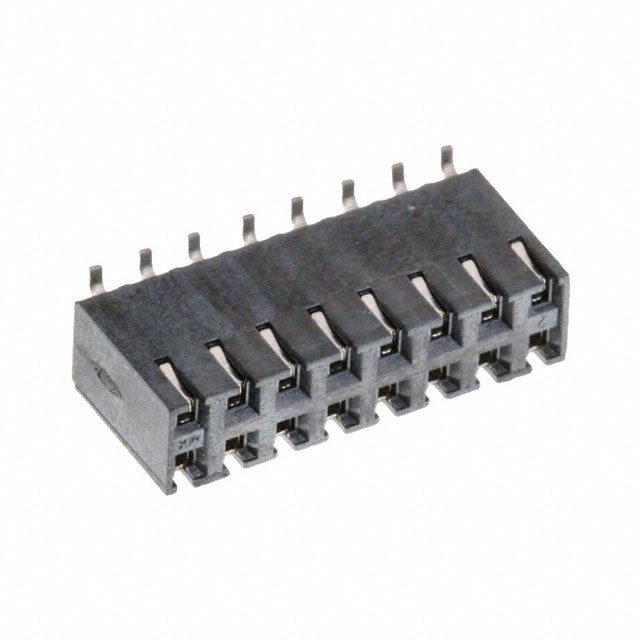

15453216

15453216 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN RCPT 16POS 0.1 TIN SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 15453216

• Description：CONN RCPT 16POS 0.1 TIN SMD
• Series：C-Grid 71395
• Mfr：Molex
• Package：Tray
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：16
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：150.0µin (3.81µm)
• Insulation Color：Black
• Insulation Height：0.368" (9.35mm)
• Contact Length - Post：-
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：2.5A
• Voltage Rating：250VAC
