Headers, Receptacles, Female Sockets Overview

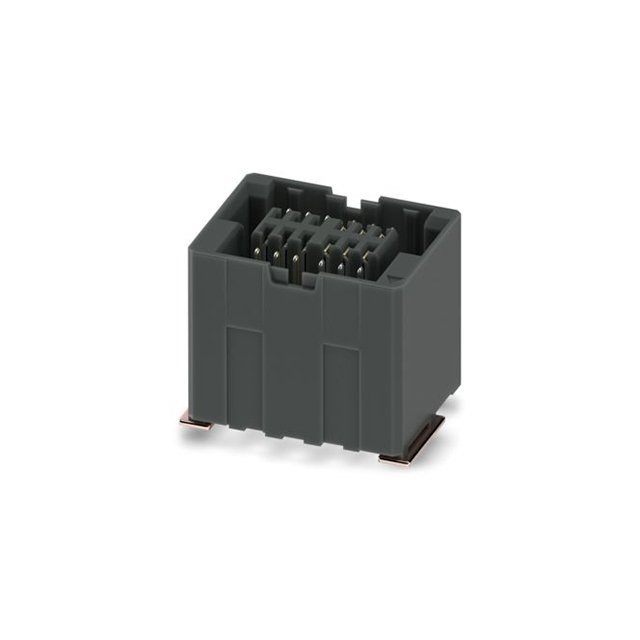

Phoenix Contact part number 1545345 is an SMD female connector from the FP 0,8 series. It features a nominal current of 1.7 A and a test voltage of 500 V AC. The connector has 12 positions with a pitch of 0.8 mm. The housing is black, and the contact surface is gold-plated. The component utilizes socket-type contacts for surface mount soldering. Operating temperature ranges from -55°C to +125°C. The contact material is copper alloy, and the housing material is liquid crystal polymer (LCP).

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount design for automated PCB assembly.
• Gold-plated contacts ensure reliable signal transmission.
• Liquid crystal polymer housing provides thermal stability.

Headers, Receptacles, Female Sockets Applications

• High-density board-to-board interconnections.
• Signal and data transmission in compact electronics.
• Mezzanine and coplanar connection implementations.

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific suffix SL 7,85 matches the required standoff height for the target application. Confirm compatibility with standard reflow soldering profiles for LCP materials. Ensure the 0.8 mm pitch aligns with the PCB footprint design. Check for RoHS compliance documentation if required by project specifications.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, high-density female receptacle is needed for surface mounting. The 12-position configuration suits applications requiring moderate I/O counts in limited space. Consider the 1.7 A current rating for power distribution needs. Evaluate the 0.8 mm pitch against available routing space on the circuit board.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the FP 0,8 product range designed for fine-pitch board-to-board connections. It supports various stack heights and orientations within the same family. The series offers both shielded and unshielded options for different electromagnetic interference requirements. It complements male counterparts for complete interconnect solutions.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other Phoenix Contact FP 0,8 series connectors with matching 12 positions and 0.8 mm pitch. Verify equivalent standoff heights such as those found in part numbers like 1545216 or 1545372 depending on mechanical constraints. Ensure identical contact plating and housing material for performance consistency.

Headers, Receptacles, Female Sockets FAQ

What is the maximum operating temperature for this connector?

The maximum operating temperature is +125°C.

Is the contact surface gold-plated?

Yes, the contact surface is gold-plated to ensure durability and conductivity.
