1545347

$9.31

Description：CONN HEADER 0.8MM 32POS SMD
Series：FP
Mfr：Phoenix Contact
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:31aaa361a2d4 Category: Headers, Receptacles, Female Sockets Brand: Phoenix Contact

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1545347 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Phoenix Contact. Its product description is CONN HEADER 0.8MM 32POS SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 1545347

Description：CONN HEADER 0.8MM 32POS SMD
Series：FP
Mfr：Phoenix Contact
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board
Number of Positions：32
Number of Positions Loaded：All
Pitch - Mating：0.031" (0.80mm)
Number of Rows：2
Row Spacing - Mating：-
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.307" (7.80mm)
Contact Length - Post：-
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：9mm, 10.5mm, 15mm, 16.5mm
Ingress Protection：-
Features：Board Guide, Solder Retention
Current Rating (Amps)：1.7A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 1545347

1545347

Headers, Receptacles, Female Sockets Overview

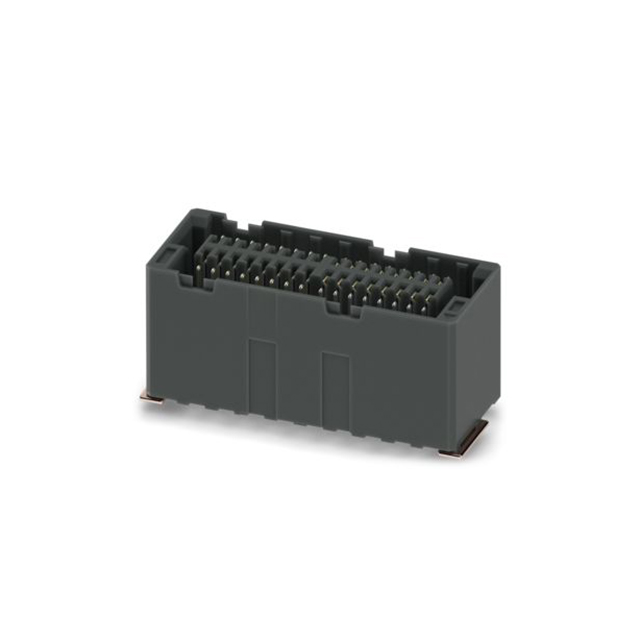

Phoenix Contact part number 1545347 is an SMD female connector belonging to the FP 0.8 series. It features a nominal current rating of 1.7 A and a test voltage of 500 V AC. The component has 32 positions with a pitch of 0.8 mm. The contact surface is gold-plated, and the housing color is black. It is designed for PCB mount applications.

Headers, Receptacles, Female Sockets Feature Summary

SMD female connector design for surface-mount technology integration
Gold-plated contact surfaces ensuring reliable electrical performance
UL 94 V-0 flammability rating for safety compliance

Headers, Receptacles, Female Sockets Applications

Board-to-board interconnections
Mezzanine connector applications
PCB mounting in industrial electronics

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific datasheet version when sourcing this component, as Phoenix Contact may update technical specifications over time. Confirm that the required 32-position configuration matches your circuit design needs. Ensure compatibility with standard SMD reflow processes given the 0.8 mm pitch. Check for any recent product change notices regarding material or dimensional updates before finalizing procurement plans.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when a high-density 32-position interface is required on a printed circuit board. The 0.8 mm pitch allows for compact layout designs compared to larger pitch alternatives. Consider the 1.7 A current rating to ensure it meets the load requirements of the connected circuits. The gold plating offers corrosion resistance suitable for demanding environments.

Headers, Receptacles, Female Sockets Part Context

This component is part of the FP 0.8 series from Phoenix Contact, which specializes in surface-mount connectors. The series is designed for robust industrial applications requiring reliable signal and power transmission. The FP 0.8 line provides various position counts to suit different density requirements while maintaining consistent mechanical and electrical characteristics across the family.
