Headers, Receptacles, Female Sockets Overview

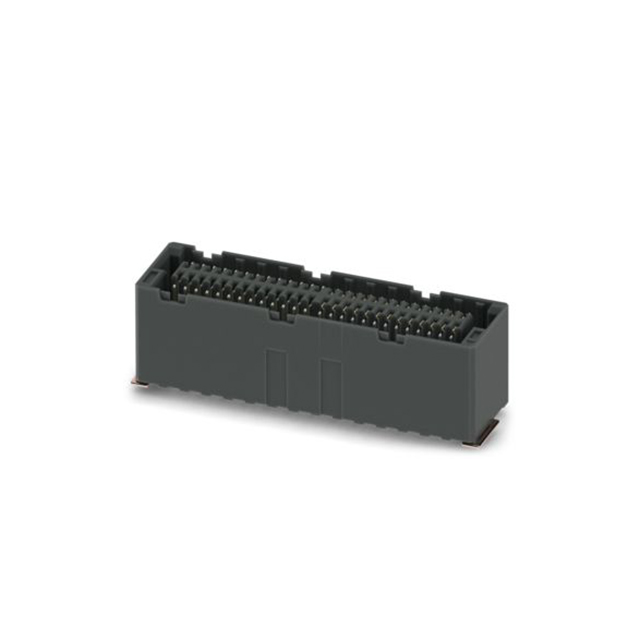

The Phoenix Contact 1545348 is a 52-position SMD female header connector with a 0.8 mm pitch. It features gold-plated contacts and a black housing, designed for surface mount assembly. The component supports a nominal current of 1.7 A and withstands a test voltage of 500 V AC. This receptacle provides reliable electrical interconnection in compact electronic designs requiring high-density connections.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount technology implementation for automated PCB assembly
• Gold contact plating ensures corrosion resistance and stable signal transmission
• High-density 52-position layout within a minimal footprint

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring robust I/O connections
• Compact electronic modules needing high pin count interfaces
• Automated manufacturing equipment control boards

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering number 1545348 against the required pin count and pitch to ensure compatibility with mating connectors. Confirm that the surface mount package type aligns with your PCB fabrication capabilities and reflow soldering profiles. Check for any specific handling requirements related to the small pitch dimensions during assembly.

Headers, Receptacles, Female Sockets Selection Notes

Choose this connector when a high-density 52-pin interface is necessary on a surface-mounted board. The 0.8 mm pitch allows for significant connectivity in limited space. Ensure the mating header matches the female socket specifications and that the 1.7 A current rating meets the circuit requirements.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the FP 0,8 series of SMD female connectors from Phoenix Contact. The series is characterized by its 0.8 mm pitch and robust construction suitable for industrial environments. The 1545348 variant specifically offers 52 positions, providing a standardized solution for multi-channel signal or power distribution in dense layouts.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 0.8 mm pitch, 52 positions, and SMD mounting style. Verify that alternative components offer equivalent current ratings and contact plating specifications to maintain performance integrity in existing designs.
