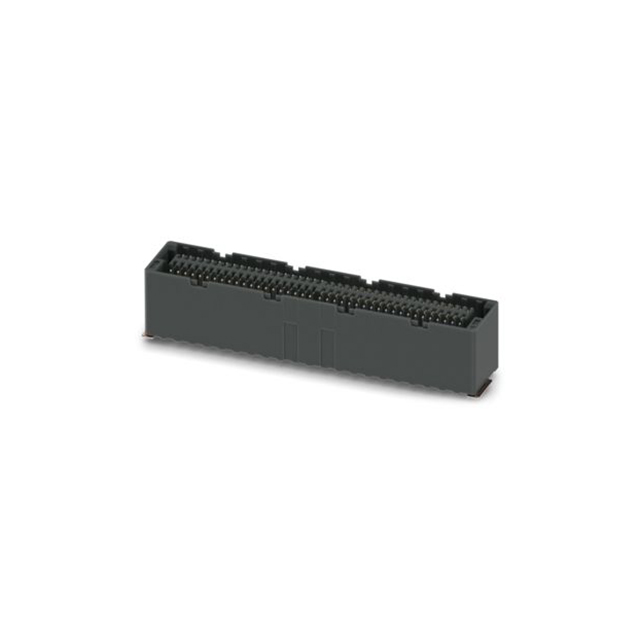

1545349 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Phoenix Contact. Its product description is CONN HEADER 0.8MM 80POS SMD. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 1545349
- Description：CONN HEADER 0.8MM 80POS SMD
- Series：FP
- Mfr：Phoenix Contact
- Package：Tape & Reel (TR),Cut Tape (CT)
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：80
- Number of Positions Loaded：All
- Pitch - Mating：0.031" (0.80mm)
- Number of Rows：2
- Row Spacing - Mating：-
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：0.307" (7.80mm)
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin
- Mated Stacking Heights：9mm, 10.5mm, 15mm, 16.5mm
- Ingress Protection：-
- Features：Board Guide, Solder Retention
- Current Rating (Amps)：1.7A
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for 1545349
Headers, Receptacles, Female Sockets Overview
Phoenix Contact part number 1545349 is an FP 0,8/ 80-FV-SL 7,85 SMD female connector. It features a nominal current of 1.7 A and a test voltage of 500 V AC. The connector has 80 positions with a pitch of 0.8 mm. The housing color is black, and the contact surface is gold-plated.
Headers, Receptacles, Female Sockets Feature Summary
- Surface mount design for automated PCB assembly
- Gold-plated contacts for reliable signal transmission
- High-density 80-position configuration
Headers, Receptacles, Female Sockets Applications
- Industrial automation control systems
- Data communication equipment interfaces
- Signal processing modules
Headers, Receptacles, Female Sockets Procurement Notes
Verify the exact Phoenix Contact datasheet to confirm RoHS compliance and specific packaging details. Ensure the ordering suffix matches the required reel quantity. Cross-reference the part number against official distributor catalogs to avoid counterfeit components. Check for any recent product lifecycle status updates before procurement.
Headers, Receptacles, Female Sockets Selection Notes
Select this component when high-density board-to-board connections are required in space-constrained industrial applications. The 0.8 mm pitch allows for significant I/O density. Gold plating ensures durability in harsh environments. Verify that the 1.7 A current rating meets the system's electrical requirements.
Headers, Receptacles, Female Sockets Part Context
This connector belongs to the FP series from Phoenix Contact, designed for robust industrial connectivity. The ScaleX contact system enhances reliability. It serves as a critical interface between circuit boards in complex electronic assemblies, ensuring stable data transfer.
Headers, Receptacles, Female Sockets Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Phoenix Contact directly for cross-reference alternatives if this specific model is discontinued or unavailable.
