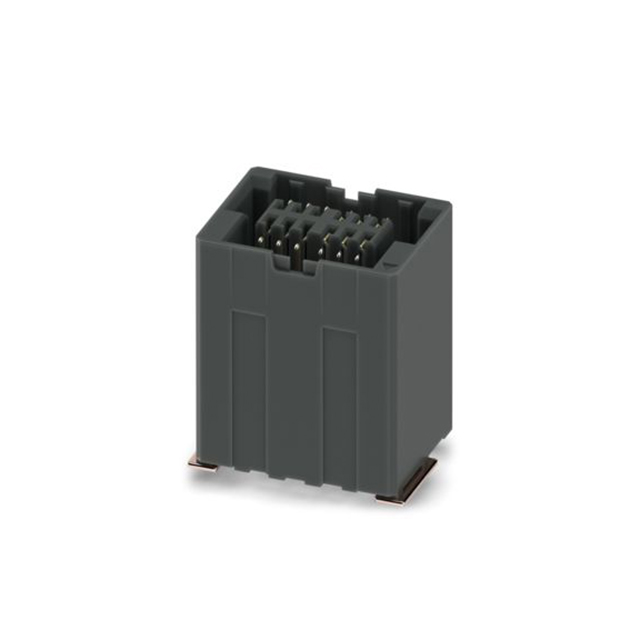

1545371

$11.59

Description：CONN HEADER 0.8MM 12POS SMD
Series：FP
Mfr：Phoenix Contact
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:075c80b3b8e2 Category: Headers, Receptacles, Female Sockets Brand: Phoenix Contact

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1545371 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Phoenix Contact. Its product description is CONN HEADER 0.8MM 12POS SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 1545371

Description：CONN HEADER 0.8MM 12POS SMD
Series：FP
Mfr：Phoenix Contact
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board
Number of Positions：12
Number of Positions Loaded：All
Pitch - Mating：0.031" (0.80mm)
Number of Rows：2
Row Spacing - Mating：0.056" (1.42mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.425" (10.80mm)
Contact Length - Post：-
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：12mm, 13.5mm, 18mm, 19.5mm
Ingress Protection：-
Features：Board Guide, Solder Retention
Current Rating (Amps)：1.7A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 1545371

1545371

Headers, Receptacles, Female Sockets Overview

Phoenix Contact part number 1545371 is a robust industrial B2B connector designed for high-speed data transmission. It supports data speeds up to 52Gbps and features the patented ScaleX contact system, which ensures mechanical robustness and reliable signal integrity in demanding environments. This component is engineered to withstand harsh industrial conditions while maintaining consistent performance for critical data links.

Headers, Receptacles, Female Sockets Feature Summary

Supports data transmission speeds up to 52Gbps
Utilizes Phoenix Contact's patented ScaleX contact system for enhanced durability

Headers, Receptacles, Female Sockets Applications

Industrial automation systems requiring high-speed data connectivity
Harsh environment applications demanding robust signal integrity
Critical infrastructure data links

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific application requirements against the 52Gbps capability and ScaleX technology specifications. Confirm that the connector meets the environmental standards necessary for the intended installation site. Ensure compatibility with existing mating components within the data network architecture before finalizing procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high-speed data transfer rates are essential for system performance. The ScaleX technology provides superior robustness compared to standard connectors, making it suitable for applications where vibration or mechanical stress may compromise connection reliability. Evaluate the need for 52Gbps throughput against other available options.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to Phoenix Contact's industrial B2B connector portfolio, which focuses on providing reliable solutions for business-to-business communication networks. The product line emphasizes durability and high-performance data transmission capabilities to support modern industrial networking demands.
