Headers, Receptacles, Female Sockets Overview

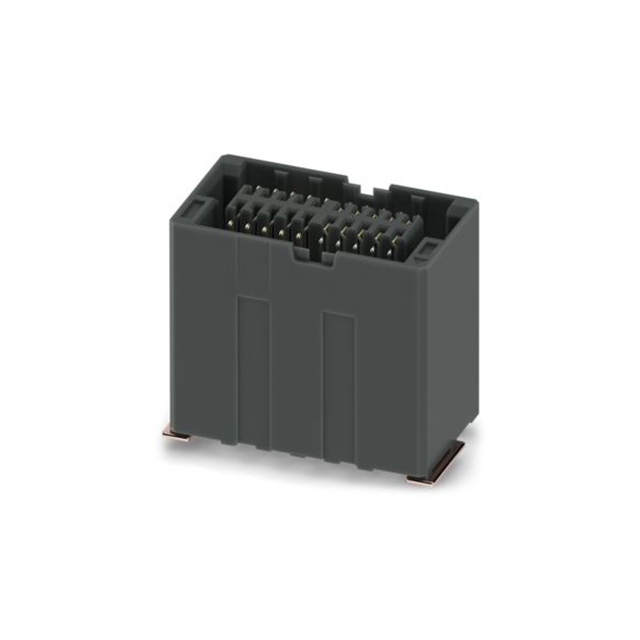

The Phoenix Contact 1545372 is a surface-mount female header connector designed for board-to-board applications. It features a 0.8 mm pitch and provides 20 positions for signal transmission. The component supports nominal currents up to 1.7 A and withstands test voltages of 500 V AC. Constructed with gold-plated contacts, it ensures reliable conductivity in industrial environments. This SMD connector utilizes the patented ScaleX contact system to maintain robustness and stability during mating cycles.

Headers, Receptacles, Female Sockets Feature Summary

• Patented ScaleX contact system for enhanced mechanical robustness
• Gold-plated contact surfaces ensuring high conductivity
• Surface-mount design optimized for automated assembly

Headers, Receptacles, Female Sockets Applications

• Industrial board-to-board interconnections
• High-density electronic assemblies
• Automated manufacturing equipment interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix matches the required height specification (e.g., 10.85 mm) as indicated in official documentation. Confirm that the component complies with RoHS and REACH regulations relevant to your region. Ensure compatibility with standard SMT reflow profiles before integration into production lines.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 20-position female socket is required for compact PCB layouts. The 0.8 mm pitch allows for high-density routing compared to larger pitch alternatives. Consider the 1.7 A current rating and 500 V dielectric strength to ensure electrical safety margins are met for the target application voltage.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the FP 0,8 series of SMD connectors from Phoenix Contact. The series offers various position counts and heights to accommodate different board stack-up requirements. The 1545372 specifically denotes the 20-position variant with a defined housing height, distinguishing it from other pin counts or male counterparts within the same product family.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the Phoenix Contact Cross Reference Search for verified alternatives. No direct substitute part numbers are confirmed in public documentation. Generic equivalents may not replicate the ScaleX contact system performance.
