1545374

$15.26

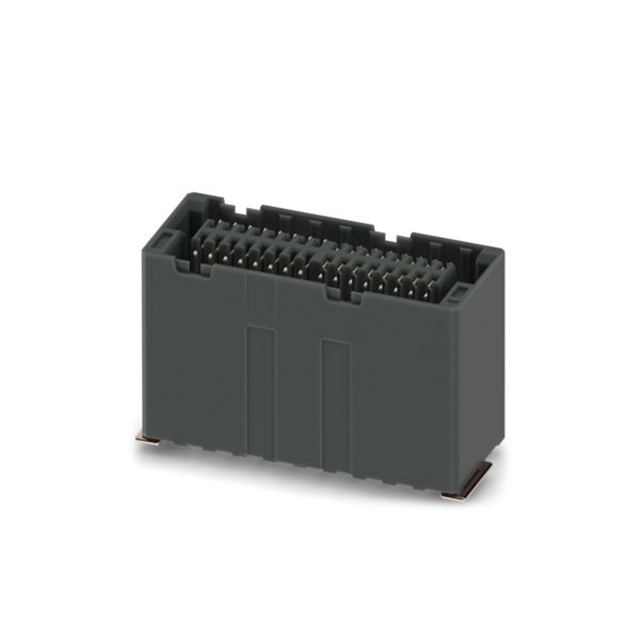

Description：CONN HEADER 0.8MM 32POS SMD
Series：FP
Mfr：Phoenix Contact
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:046360281fad Category: Headers, Receptacles, Female Sockets Brand: Phoenix Contact

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1545374 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Phoenix Contact. Its product description is CONN HEADER 0.8MM 32POS SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 1545374

Description：CONN HEADER 0.8MM 32POS SMD
Series：FP
Mfr：Phoenix Contact
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board
Number of Positions：32
Number of Positions Loaded：All
Pitch - Mating：0.031" (0.80mm)
Number of Rows：2
Row Spacing - Mating：0.056" (1.42mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.425" (10.80mm)
Contact Length - Post：-
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：12mm, 13.5mm, 18mm, 19.5mm
Ingress Protection：-
Features：Board Guide, Solder Retention
Current Rating (Amps)：1.7A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 1545374

1545374

Headers, Receptacles, Female Sockets Overview

Phoenix Contact part number 1545374 is a 32-position receptacle connector designed for surface mount applications. The connector features a contact pitch of 0.031 inches (0.80 mm). It utilizes gold plating on the contacts, which are constructed from copper alloy. The housing material is liquid crystal polymer (LCP). The component supports a maximum operating temperature of +125 °C.

Headers, Receptacles, Female Sockets Feature Summary

Supports data speeds up to 52Gbps
Features patented ScaleX contact system for robustness

Headers, Receptacles, Female Sockets Applications

Industrial B2B connectivity
Data transmission systems requiring high-speed interfaces
Surface mount electronic assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific application environment does not exceed the maximum operating temperature of +125 °C. Confirm that the surface mount footprint matches the 0.80 mm pitch requirement. Ensure compatibility with the intended mating header connectors within the Phoenix Contact ecosystem. Check for any specific handling requirements related to the LCP housing material during assembly processes.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-density, surface-mount receptacle is required for industrial data communication. The choice is driven by the need for high-speed signal integrity up to 52Gbps and the durability provided by the ScaleX contact system. Consider the gold-plated copper alloy contacts for reliable performance in demanding environments.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the Phoenix Contact portfolio of industrial connectors. It is designed to mate with corresponding headers to establish secure electrical connections. The product line emphasizes robustness and high-speed data transfer capabilities suitable for modern industrial automation and control systems.
