Headers, Receptacles, Female Sockets Overview

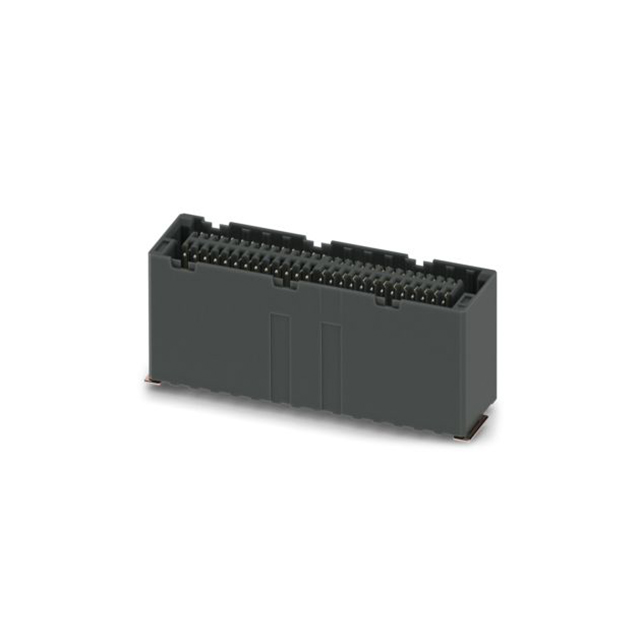

The Phoenix Contact 1545376 is a 52-position SMD female socket connector designed for surface mount applications. It features a 0.8 mm (0.031 inch) pitch and gold-plated contacts to ensure reliable signal integrity. The component supports a nominal current of 1.7 A and withstands a test voltage of 500 V AC. Constructed with a black housing, this robust industrial connector is part of the ScaleX series, engineered to support high-speed data transmission up to 52 Gbps while maintaining durability in demanding environments.

Headers, Receptacles, Female Sockets Feature Summary

• Patented ScaleX contact system ensures robustness and reliability for high-speed data transmission
• Gold-plated contact surfaces provide superior conductivity and corrosion resistance
• Surface mount design facilitates automated assembly and compact board integration

Headers, Receptacles, Female Sockets Applications

• Industrial automation systems requiring high-density interconnects
• Data communication equipment supporting high-speed protocols
• Electronic control units needing reliable surface-mounted interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific order matches the 1545376 designation for the 52-position SMD variant. Confirm RoHS compliance status if required by project specifications. Ensure handling procedures account for surface mount technology requirements during storage and installation to prevent mechanical stress on the gold contacts.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-pin-count, small-pitch interface is necessary for space-constrained designs. The 0.8 mm pitch allows for dense routing compared to standard connectors. Consider the 1.7 A current rating and 500 V AC test voltage limits to ensure compatibility with the target circuit's electrical requirements and environmental conditions.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to Phoenix Contact’s industrial B2B connector portfolio, which emphasizes durability and intelligent power supply integration. It is distinct from cable assemblies or protective housings, serving specifically as a direct board-to-board or card-edge interface element within complex electronic assemblies.

Headers, Receptacles, Female Sockets Replacement Considerations

No public substitute part numbers are documented for this specific configuration. Cross-reference searches should be conducted carefully, as pin counts, pitch dimensions, and contact plating materials must match exactly to maintain functional equivalence.
