1545378

Headers, Receptacles, Female Sockets Overview

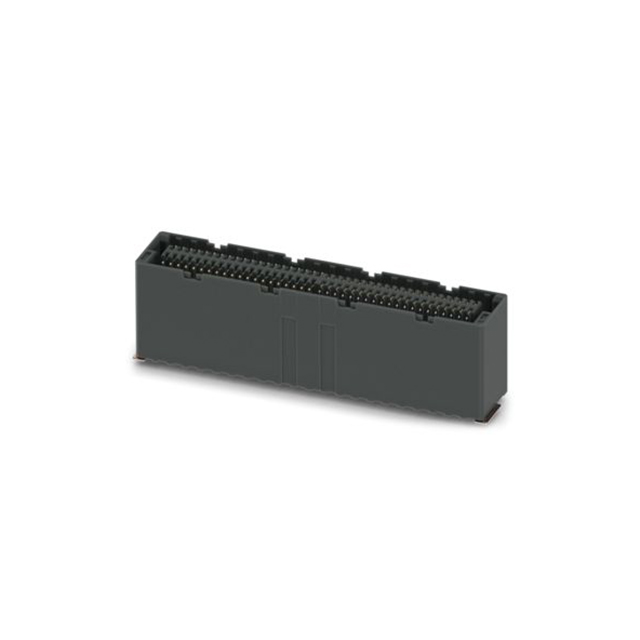

The Phoenix Contact 1545378 is an 80-position SMD female socket connector with a 0.8 mm pitch. It features gold-plated contacts and a black housing. The component supports a nominal current of 1.7 A and withstands a test voltage of 500 V AC. Designed for surface mount technology, it utilizes the ScaleX contact system to ensure robust industrial connections.

Headers, Receptacles, Female Sockets Feature Summary

• Utilizes patented ScaleX contact system for enhanced robustness in industrial environments
• Gold-plated contact surfaces ensure reliable electrical performance
• Designed for surface mount assembly with precise 0.8 mm positioning

Headers, Receptacles, Female Sockets Applications

• Industrial B2B data transmission systems
• High-speed signal interconnects requiring up to 52Gbps support
• Automated machinery control panels

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix matches the required configuration. Confirm that the component meets RoHS and REACH compliance standards for your region. Ensure the supplier provides official Phoenix Contact documentation to guarantee authenticity and traceability of the electronic components.

Headers, Receptacles, Female Sockets Selection Notes

Select this part when high-density surface mounting is required for 80-position interfaces. The 0.8 mm pitch allows for compact board layouts. Consider the 1.7 A current rating and 500 V test voltage limits during circuit design to ensure operational safety and reliability under load conditions.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the FP series of headers and sockets from Phoenix Contact. It is designed for secure mating with corresponding male header connectors. The component is part of a broader ecosystem of industrial connectivity solutions focused on durability and high-speed data integrity.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the Phoenix Contact cross-reference search tool for verified alternatives. Ensure any substitute maintains the 0.8 mm pitch and 80-position count. Verify compatibility with existing PCB footprints and mating hardware before implementation.
