1549644

Overview

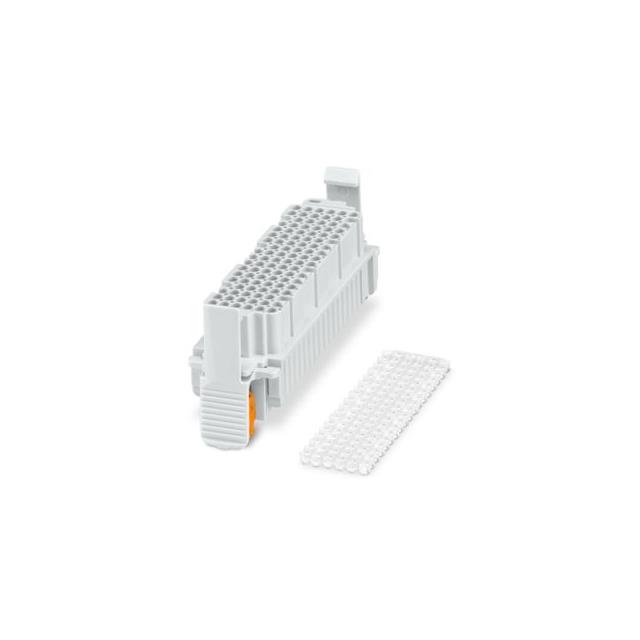

The Phoenix Contact 1549644 is a heavy duty power connector insert designed for control cabinet connections. It features a female socket configuration with 107 positions plus protective earth (PE). The component utilizes crimp connection technology and supports wire cross-sections ranging from 0.14 mm² to 2.5 mm². Rated for 250 V and 10 A, it employs silver-plated copper alloy contacts housed in polycarbonate.

Feature Summary

• Female socket design with snap-in mounting capability
• Crimp termination method for secure wire attachment
• Silver-plated copper alloy contacts for conductivity
• Integrated protective earth position

Applications

• Control cabinet wiring systems
• Heavy duty power distribution modules
• Industrial equipment interconnections

Procurement Notes

Verify the specific housing compatibility before procurement, as this insert requires a matching HC-CME-DD series housing. Confirm that the application voltage does not exceed 250 V and current load remains within 10 A limits. Ensure wire gauges fall between 0.14 mm² and 2.5 mm² for proper crimping. Check for RoHS compliance requirements if applicable to your region.

Selection Notes

Select this part when a high-density female insert is required for heavy duty applications. The 107+PE configuration suits complex power routing needs. Consider the crimp termination requirement versus solder or screw options. Polycarbonate housing offers durability in industrial environments. Verify mating connector dimensions to ensure physical fit within the enclosure space constraints.

Part Context

This component belongs to the Phoenix Contact Heavy Duty Power Connectors family, specifically the HC-CME-DD series. These inserts are engineered for robust industrial environments requiring reliable power transmission. The series typically pairs with corresponding male housings to form complete connector assemblies for machinery and automation systems.

Replacement Considerations

Direct substitutes include other Phoenix Contact HC-CME-DD-107-F-SNAP-L variants with identical pin counts and ratings. Cross-brand replacements require careful verification of housing interface geometry and contact spacing to ensure mechanical and electrical compatibility without modification.

FAQ

What is the maximum wire size supported by this insert?

The maximum wire cross-section supported is 2.5 mm².

Does this insert include a ground position?

Yes, it includes one protective earth (PE) position in addition to the 107 signal/power positions.
