1549875

Overview

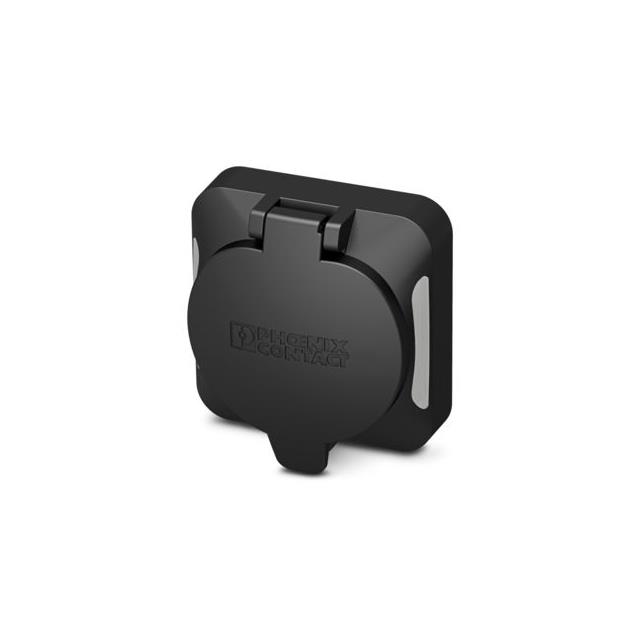

The Phoenix Contact 1549875 is a CHARX connect modular Type 2 charging socket designed for electric vehicle supply equipment (EVSE). It supports 32 A current and 480 V AC voltage, complying with IEC 62196-2 standards. The unit features a square design with M5 thread mounting and rear installation. It includes an electronic lock operating at 12 V and is marked with the Phoenix Contact logo. The black housing is intended for use with Mode 3, Scheme B charging configurations.

Feature Summary

• Compatible with Type 2 charging plugs and EVSE infrastructure
• Integrated electronic locking mechanism for secure connection
• Designed for rear panel mounting with M5 threading
• Complies with international safety and charging standards

Applications

• Electric vehicle charging stations
• Public AC charging infrastructure
• Commercial fleet charging points
• Residential EVSE installations

Procurement Notes

Verify compatibility with Gen 2 cable kits and ensure the 12 V electronic lock power supply matches system requirements. Confirm that the square design fits the specific EVSE enclosure dimensions. Check that the 32 A rating aligns with the upstream circuit protection. Ensure the product version matches the required charging standard compliance.

Selection Notes

Select this model for applications requiring a robust, locked Type 2 interface. It is suitable for environments needing secure physical connections to prevent unauthorized disconnection. Consider the rear mounting requirement when designing the EVSE housing. Verify that the 480 V AC rating meets local electrical grid specifications.

Part Context

This component belongs to the CHARX connect modular series, specifically the Gen 2 Basic variant. It is part of a broader ecosystem of charging accessories including protective covers and cable kits. The series emphasizes modularity and compliance with global charging standards for electric mobility infrastructure.

Replacement Considerations

No direct substitute part numbers are publicly confirmed in the provided documentation. Ensure any replacement maintains compatibility with the existing Gen 2 infrastructure and locking mechanism specifications.
