1550050

Overview

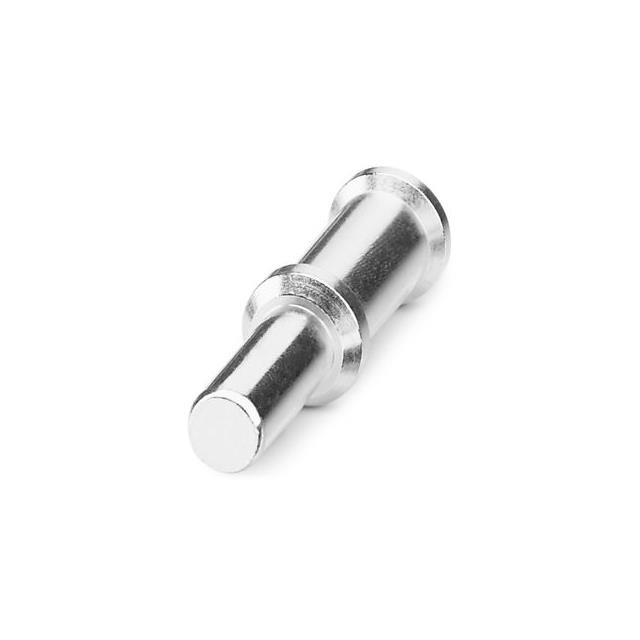

Phoenix Contact part number 1550050 is a heavy-duty power connector crimp contact belonging to the HC-M--35 series. It features a pin (male) gender with a turned contact design and an 8 mm diameter. The component supports a maximum wire gauge of 6 AWG and a connection cross-section of 16 mm². Rated current is 100 A, with an operating temperature range from -40°C to +125°C. The contact material is lead-free copper alloy with a silver-plated surface finish.

Feature Summary

• Heavy-duty power connector interface designed for high-current applications
• Turned pin construction ensures reliable mechanical stability
• Silver-plated lead-free copper alloy surface for conductivity

Applications

• Industrial machinery electrical connections
• Power distribution systems requiring high current capacity
• Heavy-duty equipment wiring harnesses

Procurement Notes

Verify that the specific application requires a male pin contact compatible with the HC-M--35 housing series. Confirm that the wire gauge falls within the 6 AWG maximum limit and that the operating environment stays within the -40°C to +125°C temperature range. Ensure the silver-plated finish meets corrosion resistance requirements for the intended installation site.

Selection Notes

Select this component when a robust, high-current crimp solution is needed for heavy-duty environments. The 100 A rating and 16 mm² cross-section support substantial power loads. Consider the turned pin geometry for secure mating in vibration-prone industrial settings. Verify compatibility with the corresponding female socket or housing before integration into the assembly.

Part Context

This component is part of Phoenix Contact's HC-M--35 series, which provides modular heavy-duty connectivity solutions. The series is engineered for demanding industrial conditions, offering durable contacts that maintain performance under significant electrical and mechanical stress. It complements other series components to form complete interconnection systems.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
