1550053

Overview

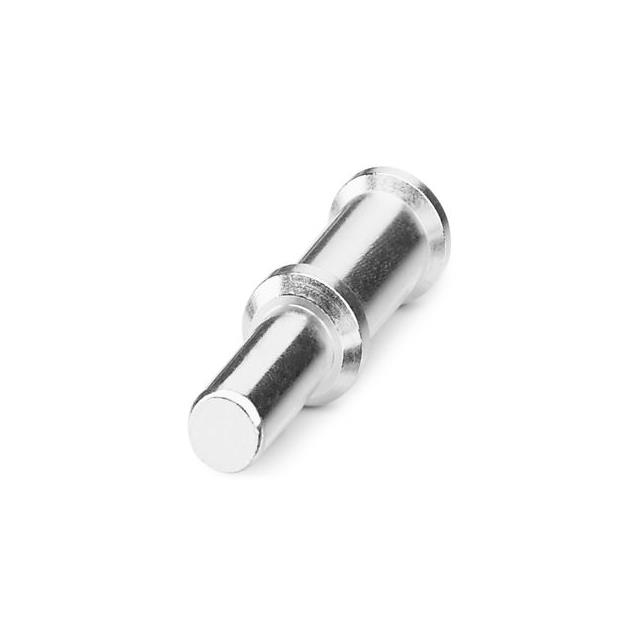

Phoenix Contact part number 1550053 is a crimp pin contact designed for heavy-duty power connector systems. It features a male plug configuration with a gold-plated contact surface to ensure reliable signal and power transmission. The component utilizes a crimp connection technology for wire termination, supporting a wire stripping length of 16 mm. It is compatible with wire cross-sections up to 2 AWG. The product belongs to the CK8 series, engineered for robust industrial environments requiring durable electrical interconnections.

Feature Summary

• Male crimp pin contact design for secure mating in heavy-duty connector housings
• Gold-plated contact surface for enhanced conductivity and corrosion resistance
• Crimp connection method ensures stable mechanical and electrical wire termination

Applications

• Industrial control cabinet wiring
• Heavy-duty power distribution systems
• Automated machinery interconnections

Procurement Notes

Verify that the selected housing is compatible with the CK8 series contact geometry. Confirm that the wire gauge falls within the specified crimp range for optimal retention force. Ensure proper crimping tools are available to achieve manufacturer-specified termination standards. Check for any specific environmental ratings required for the intended installation location.

Selection Notes

Select this component when a male crimp contact is required for heavy-duty applications. Consider the gold plating for environments where oxidation resistance is critical. Evaluate the 2 AWG capacity against the maximum current load requirements. Ensure the 16 mm stripping length aligns with the available wire preparation tools and workspace constraints.

Part Context

This contact is part of Phoenix Contact's CK8 heavy-duty connector family, which provides standardized interfaces for demanding industrial sectors. The series supports various configurations to accommodate different power and signal needs. Integration with compatible CK8 housings allows for modular system expansion and maintenance.

Replacement Considerations

No direct substitute part numbers are publicly confirmed in the provided documentation. Verify compatibility with existing CK8 housings if sourcing alternatives from other manufacturers.
