1550058

Overview

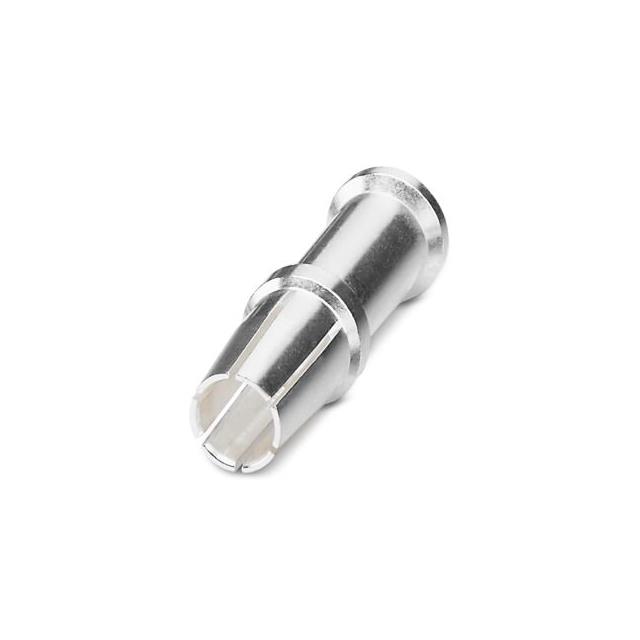

Phoenix Contact part number 1550058 is a heavy-duty power connector contact belonging to the HC-M--35 series. It is a female crimp socket with an 8 mm contact diameter and a turned design. The component features a copper alloy body that is lead-free, with a silver-plated contact surface for conductivity. It supports a connection cross-section of 16 mm² (equivalent to 6 AWG) and carries a rated current of 100 A. The unit operates within a temperature range of -40°C to +125°C.

Feature Summary

• Silver-plated copper alloy construction ensures reliable electrical performance and corrosion resistance.
• Turned socket design provides secure mechanical retention for mating connectors.
• Lead-free material composition complies with environmental standards.

Applications

• Heavy-duty industrial power distribution systems
• High-current machinery interconnections
• Energy infrastructure equipment

Procurement Notes

Verify the specific datasheet version to confirm operating temperature limits, as sources indicate both -40°C and -60°C minimums. Ensure compatibility with the HC-M--35 housing series. Confirm that the silver-plated finish meets your corrosion requirements. Cross-reference the 16 mm² wire gauge specification with your cable preparation tools.

Selection Notes

Select this component when a high-current 100 A capacity is required for heavy-duty applications. The 16 mm² cross-section accommodates substantial power loads. The silver plating offers superior conductivity compared to tin finishes. Verify that the 8 mm contact diameter fits the intended mating interface within the HC-M--35 system architecture.

Part Context

This contact belongs to the Phoenix Contact HC-M--35 series of heavy-duty power connectors. These components are designed for robust industrial environments requiring high current carrying capabilities. The series utilizes a standardized housing system, allowing for modular expansion and reliable signal or power transmission in demanding conditions.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
