1551459

Overview

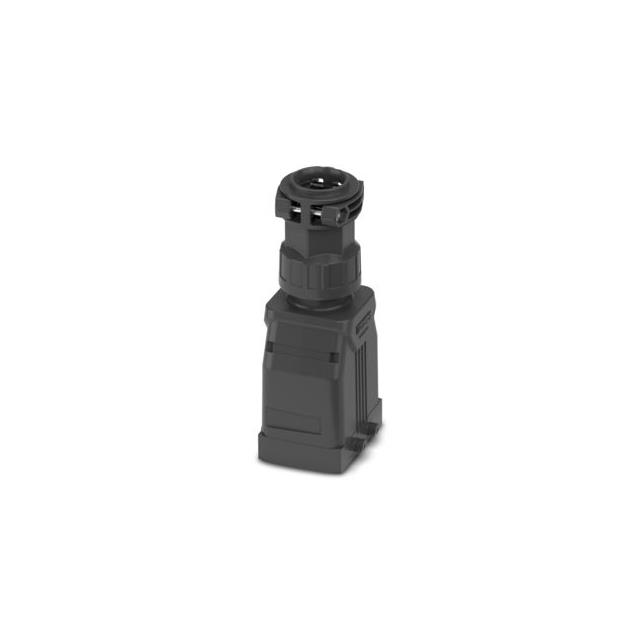

Phoenix Contact part number 1551459 is a sleeve housing for rectangular connectors, specifically the HC-DCC06-HHFD-1TGESM32 model. Constructed from polyamide 6 (PA 6), it features a double-locking latch mechanism for secure attachment. The housing accommodates one straight cable outlet with an M32 thread size and includes an integrated cable gland. Key physical dimensions are a width of 53.8 mm, a depth of 60.5 mm, and a height of 139.9 mm. It is designed for top entry applications.

Feature Summary

• Features a double-locking latch system for enhanced mechanical security
• Constructed from durable polyamide 6 material
• Includes an integrated cable gland for strain relief
• Designed for single straight cable outlet configuration

Applications

• Industrial power supply connections
• Heavy-duty connector assembly
• Control cabinet wiring
• Machine tool electrical interfaces

Procurement Notes

Verify the complete part number including any ordering suffixes to ensure compatibility with specific insert modules and locking mechanisms. Confirm that the PA 6 material properties meet environmental requirements. Check datasheet specifications for mating force and IP rating compliance before integration into final assemblies.

Selection Notes

Select this housing when a robust, double-latching solution is required for M32 cable entries. Ensure the chosen insert module matches the DCC06 series standards. Consider the straight outlet orientation and integrated gland requirement during design phase to avoid additional component procurement.

Part Context

This component belongs to Phoenix Contact's Heavy Duty Connector series, specifically the DCC06 housing family. It serves as the protective outer shell for modular contact inserts, providing environmental sealing and mechanical protection in industrial automation and energy distribution networks.

Replacement Considerations

Direct substitutes must match the DCC06 form factor, M32 thread, and double-locking latch design. Verify dimensional compatibility with existing mounting structures. Cross-reference with Phoenix Contact’s official replacement matrix for updated or discontinued variants.
