1552366

Overview

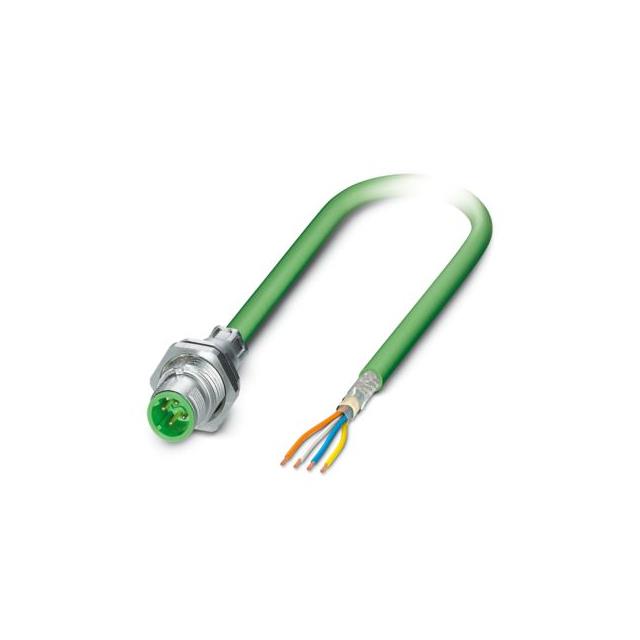

Phoenix Contact part number 1552366 is a circular cable assembly from the SAC series, designed for industrial automation. It features a 2.0-meter length with a Polyvinyl Chloride (PVC) jacket in green. The assembly includes one M12-SPEEDCON D-coded male connector and one rear-mounting device connector. It supports PROFINET CAT5 and EtherCAT CAT5 at 100 Mbps, utilizing four-position pin contacts.

Feature Summary

• Supports PROFINET CAT5 and EtherCAT CAT5 communication protocols
• Features an M12-SPEEDCON D-coded straight male connector
• Includes a rear-mounting device connector for flush installation

Applications

• Plant engineering
• Controller engineering
• Electrical device engineering

Procurement Notes

Verify the specific connector configuration against project requirements, as this item combines an M12 plug with a rear-mounting device connector. Confirm that the PVC jacket material meets environmental standards for the intended installation location. Ensure compatibility with 100 Mbps network speeds before procurement.

Selection Notes

Select this component when a fixed-length Ethernet solution is required for PROFINET or EtherCAT networks. The rear-mounting design facilitates space-saving installations within control cabinets. Verify that the M12 D-coding aligns with the connected fieldbus devices to ensure proper signal integrity and protocol support.

Part Context

This cable belongs to the Phoenix Contact SAC series, which provides standardized solutions for sensor and actuator connections. The product integrates shielded cabling with robust connectors to maintain signal quality in industrial environments. It serves as a pre-assembled alternative to custom wiring, reducing installation time and potential connection errors.

Replacement Considerations

No public substitute part numbers are confirmed for this specific configuration. Replacement requires matching the M12 D-coded male end and the rear-mounting device connector specifications exactly.
