Product Detailed Parameters

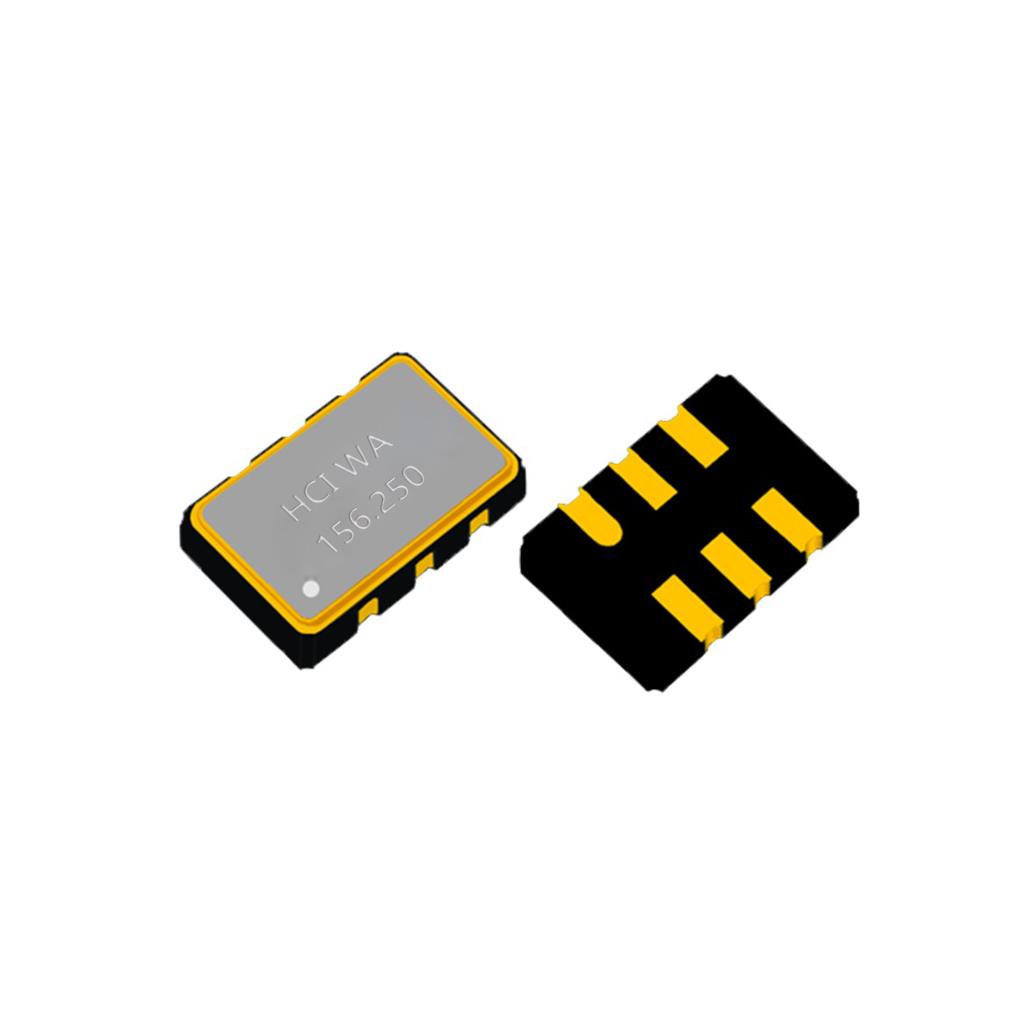

- Description：XTAL OSC XO 100MHZ HCSL SMD
- Series：1553C
- Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
- Package：Tape & Reel (TR),Strip
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：100 MHz
- Function：Enable/Disable
- Output：HCSL
- Voltage - Supply：3.3V
- Frequency Stability：±25ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：10mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：6-SMD, No Lead
- Size / Dimension：0.197" L x 0.126" W (5.00mm x 3.20mm)
- Height - Seated (Max)：0.053" (1.35mm)
- Supplier Device Package：-
Download product information
Overview
The 1553C-100.000K33DTSTK is a standard crystal oscillator (XO) manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 100 MHz and utilizes LVDS output signaling. The device functions with a 3.3V supply voltage and includes an enable/disable control feature. It is housed in a compact 6-SMD, no-lead package, designed for surface-mount applications requiring precise timing signals.
Feature Summary
- LVDS output interface for high-speed signal integrity
- Integrated enable and disable control functionality
- Standard crystal oscillator configuration
Applications
- Network communication systems
- Consumer electronics timing circuits
- Industrial control equipment
Procurement Notes
Verify the specific datasheet for the 1553C-100.000K33DTSTK to confirm exact electrical parameters such as phase noise and stability. Ensure compatibility with the target circuit's voltage levels and load requirements before integration. Cross-reference the package dimensions against the PCB footprint design to guarantee proper assembly.
Selection Notes
Select this component when a 100 MHz LVDS clock source is required in a small form factor. The 3.3V operation aligns with common digital logic families. Consider the enable pin utility for power management strategies in battery-operated or low-power designs compared to always-on alternatives.
Part Context
This part belongs to the 1553C series of oscillators from Suzhou Hangjing. The series typically offers various frequencies and output types within similar packages. The manufacturer specializes in quartz frequency control components, providing solutions for automotive, medical, and networking sectors through standardized oscillator products.
Replacement Considerations
Check for direct substitutes within the same series, such as other frequencies in the 1553C line. Verify if alternative manufacturers offer equivalent LVDS oscillators with matching pinouts and electrical specifications to ensure seamless board-level replacement without redesign.
