1553C125000J33DTK

Overview

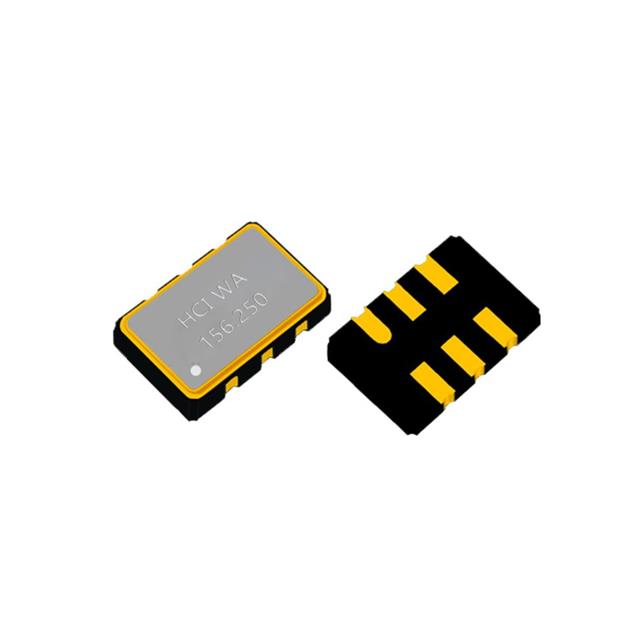

The 1553C125000J33DTK is a 125 MHz crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co.,Ltd. It utilizes HCSL output format and operates at a supply voltage of 3.3V. The device features an Enable/Disable control function for power management. It is housed in a compact 6-SMD, No Lead package, designed for surface-mount applications requiring precise timing signals.

Feature Summary

• HCSL output format for high-speed data handling
• Integrated Enable/Disable control functionality
• Surface-mount 6-SMD no-lead package design

Applications

• High-speed FPGA timing solutions
• Satellite communication systems
• In-vehicle electronic systems

Procurement Notes

Verify the manufacturer part number against official Suzhou Hangjing documentation to ensure authenticity. Confirm that the received unit matches the specified 125 MHz frequency and 3.3V HCSL characteristics. Check for factory-sealed packaging and recent date codes to guarantee component integrity before integration into designs.

Selection Notes

Select this component when a stable 125 MHz reference with HCSL signaling is required for high-speed digital interfaces. The integrated enable/disable feature supports dynamic power management strategies. Ensure the system design accommodates the 6-SMD footprint and 3.3V logic levels compatible with the target application circuitry.

Part Context

Suzhou Hangjing specializes in quartz frequency control components, including oscillators and crystals. This model represents their standard oscillator line, targeting global electronics markets with a focus on precision and reliability for signal processing applications across various industries.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing board layouts and electrical specifications if considering alternative sources or updated series from the same manufacturer.
