1553D-133.330JWVDTSTK

Overview

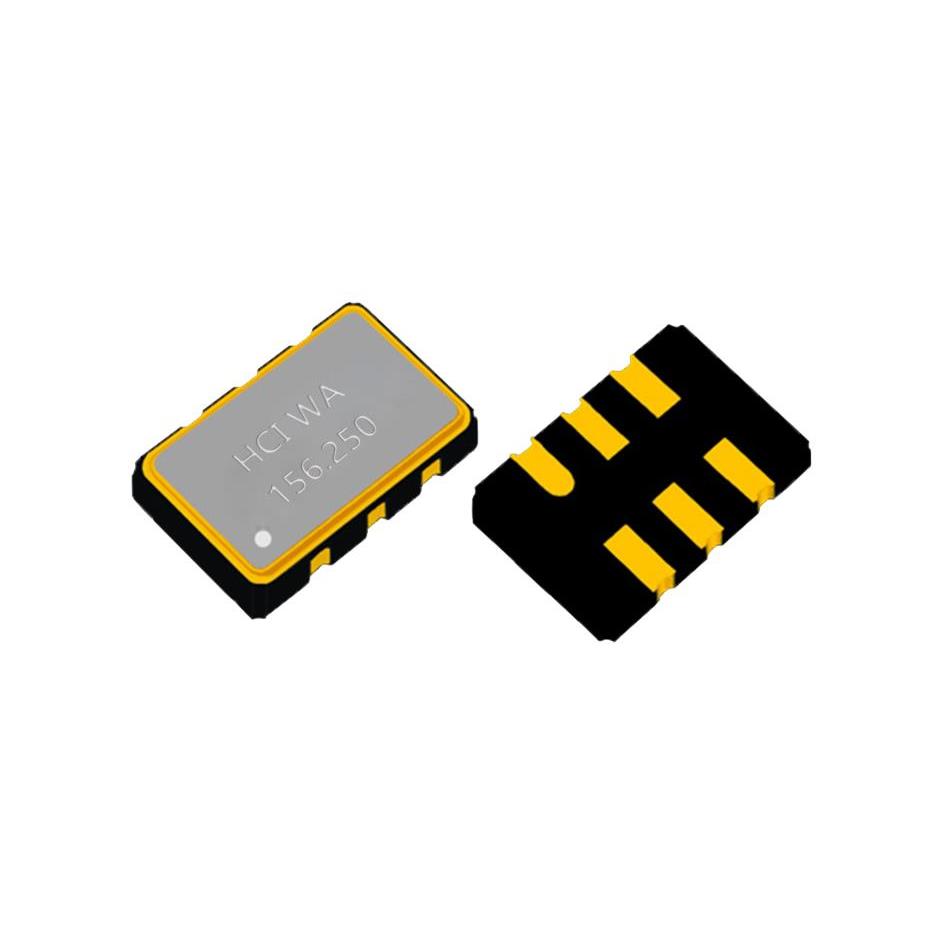

The 1553D-133.330JWVDTSTK is a crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co.,Ltd. It operates at a frequency of 133.33 MHz and utilizes LVDS output signaling. The device supports a supply voltage range of 1.8V to 3.3V and includes enable/disable functionality. It is housed in a 6-SMD, No Lead package.

Feature Summary

• Provides stable 133.33 MHz clock signals using LVDS technology for high-speed data transmission.
• Features integrated enable and disable control capabilities for power management flexibility.
• Designed for low-power operation with a wide supply voltage compatibility range.

Applications

• Smartphone signal processing
• Satellite communication systems
• In-vehicle electronic systems

Procurement Notes

Verify the manufacturer part number against official Suzhou Hangjing documentation to ensure authenticity. Confirm that the specific ordering suffix matches the required LVDS output type and voltage specifications. Check for any recent revisions in the datasheet regarding pinout or electrical characteristics before finalizing procurement orders.

Selection Notes

Select this component when a precise 133.33 MHz frequency is required for digital signal processing applications. Ensure the system design accommodates the 6-SMD no-lead package dimensions. Verify that the operating voltage aligns with the 1.8V to 3.3V range and that LVDS interface compatibility is maintained within the circuit architecture.

Part Context

This model belongs to the quartz frequency controlling units produced by Suzhou Hangjing Elec&Tech Co.,Ltd. Founded in 2014, the company specializes in R&D and production of such components. This specific oscillator serves as a key signal-processing element within broader electronic systems requiring precise timing references.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult official distributor channels or manufacturer engineering support for potential cross-reference options if this specific model becomes unavailable.

FAQ

What is the output signal type of the 1553D-133.330JWVDTSTK?

The device uses LVDS (Low Voltage Differential Signaling) output.

Does this oscillator support power control features?

Yes, it includes an enable and disable function for managing power consumption.
