Product Detailed Parameters
- Description：oscillator,5032,6 pads, LVDS, 15
- Series：1553D
- Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
- Package：Tape & Reel (TR),Strip
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：156.2625 MHz
- Function：Enable/Disable
- Output：LVDS
- Voltage - Supply：3.3V
- Frequency Stability：±20ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-20°C ~ 70°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：-
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：SMD 5mm x 3.2mm
- Size / Dimension：0.197" L x 0.126" W (5.00mm x 3.20mm)
- Height - Seated (Max)：0.051" (1.30mm)
Download product information
Overview

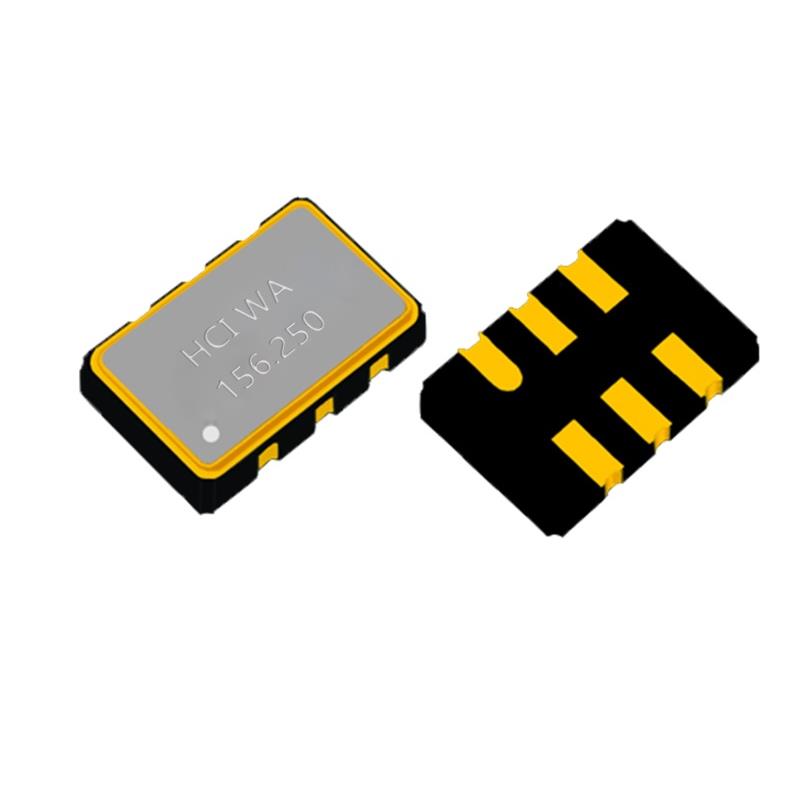

The 1553D-156.2625L33HPK is a high-frequency crystal oscillator manufactured by Suzhou Hangjing Elec & Tech Co., Ltd. This component operates at a nominal frequency of 156.2625 MHz and utilizes LVDS output signaling for low-noise performance. It is designed in a surface-mount package, specifically identified as a 4-SMD, No Lead configuration, suitable for automated assembly processes. The device supports a supply voltage of 3.3V, ensuring compatibility with standard logic levels in modern electronic systems. As part of the company's quartz frequency control portfolio, it serves as a precision clock source for data communication and signal processing applications requiring stable timing references.
