1553H-16.384J33DTSK

Overview

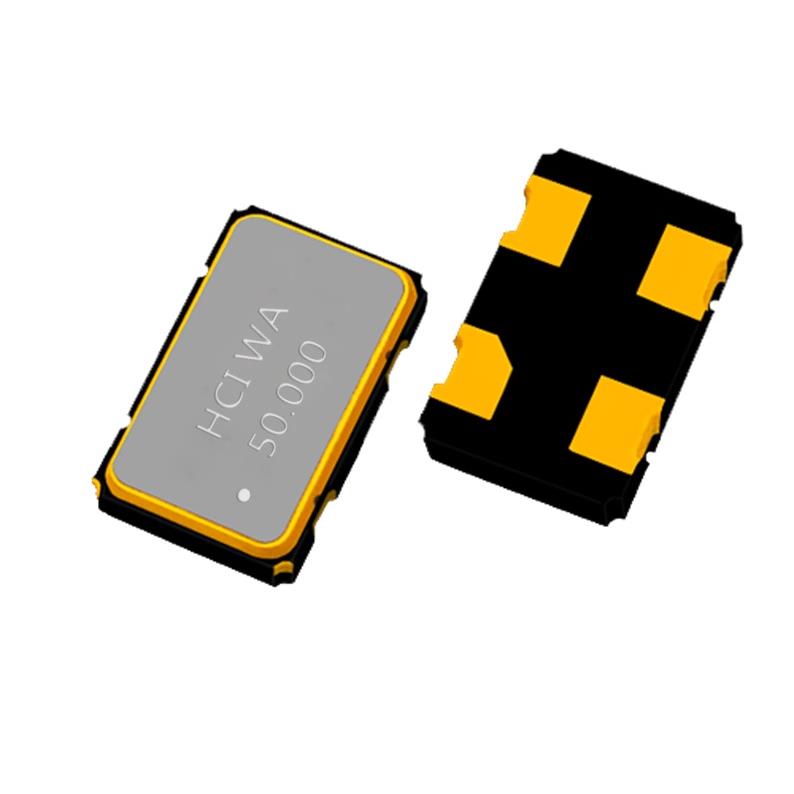

The 1553H-16.384J33DTSK is a standard crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 16.384 MHz and utilizes HCMOS output logic levels. The device is designed for a supply voltage of 3.3V and features an enable/disable control function. It is housed in a 4-SMD surface-mount package with dimensions specified as 5032.

Feature Summary

• Supports enable and disable functionality for power management
• Utilizes HCMOS output interface for digital compatibility
• Designed for surface-mount integration

Applications

• General purpose clock signal generation
• Digital circuit timing references
• Embedded system clock sources

Procurement Notes

Verify the specific package outline drawing and pin configuration against the manufacturer's official datasheet before PCB layout finalization. Confirm that the 3.3V supply voltage aligns with the target system's power rails. Ensure the HCMOS output swing is compatible with the receiving logic inputs to guarantee reliable signal integrity during operation.

Selection Notes

Select this component when a standard 16.384 MHz clock source is required for digital applications. The choice is driven by the need for a 3.3V operating voltage and the availability of an enable pin for power control. The 5032 SMD form factor suits space-constrained designs requiring surface-mount technology integration.

Part Context

Suzhou Hangjing Elec&Tech Co., Ltd. specializes in quartz frequency controlling units, including oscillators and resonators. This model belongs to their series of surface-mount crystal oscillators designed for commercial and industrial electronic applications requiring stable frequency references.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing with other manufacturers requires independent verification of electrical parameters and mechanical footprint compatibility.
