1553H4-12.000J33DTSTK

Overview

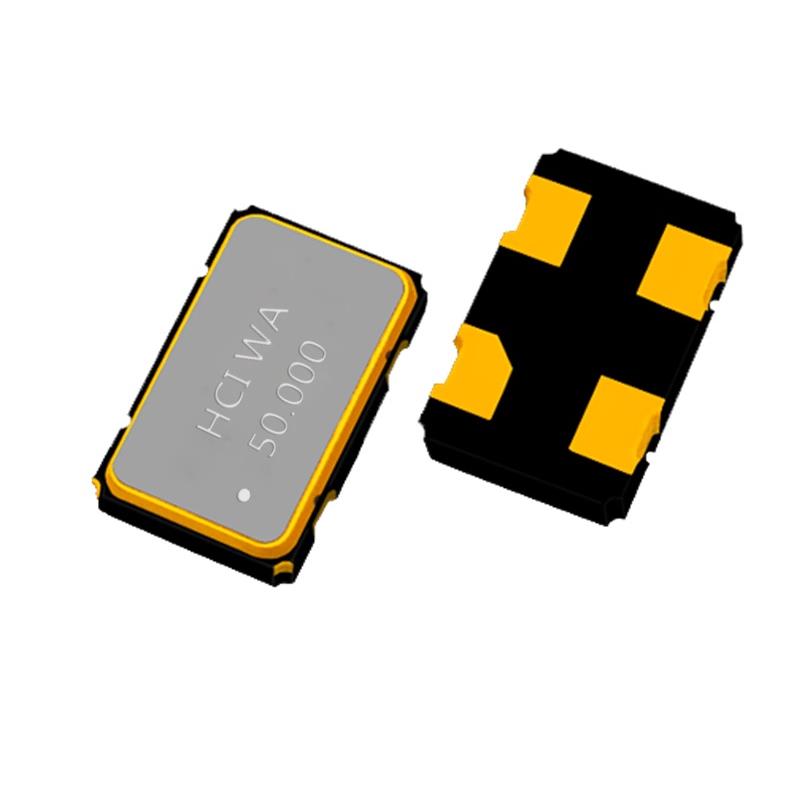

The 1553H4-12.000J33DTSTK is a 12 MHz crystal oscillator (XO) manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It utilizes HCMOS output logic and operates at a supply voltage of 3.3V. The device features an Enable/Disable control function for power management. It is housed in a compact 4-SMD, No Lead package, designed for surface-mount applications requiring standard frequency stability.

Feature Summary

• HCMOS output interface for digital signal compatibility
• Integrated enable/disable functionality for power optimization
• Compact 4-SMD no-lead surface mount packaging

Applications

• General purpose clock generation in embedded systems
• Digital signal processing timing references
• Consumer electronics requiring stable frequency sources

Procurement Notes

Verify the manufacturer part number against official Suzhou Hangjing documentation to ensure authenticity. Confirm that the specific suffix matches the required voltage and package specifications. Request datasheets directly from authorized distributors or the manufacturer to validate technical parameters before procurement.

Selection Notes

Select this component when a 12 MHz HCMOS clock source with enable control is required. Ensure the system design supports 3.3V operation and accommodates the 4-SMD footprint. Consider thermal and electrical requirements compatible with standard HCMOS loads.

Part Context

This oscillator belongs to the 1553H series from Suzhou Hangjing, focusing on quartz frequency control units. The company specializes in research and production of such components since 2014. This model represents a standard XO variant within their portfolio.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult manufacturer guidelines for direct replacements.
