1554098

Overview

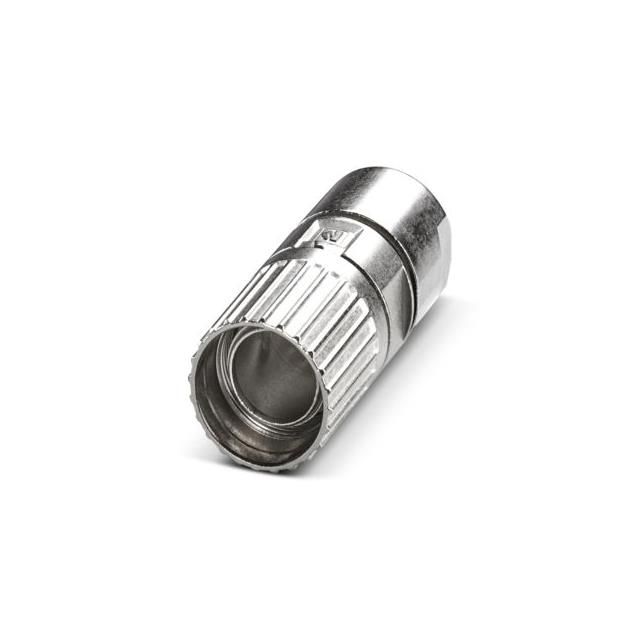

Phoenix Contact part number 1554098 is a cable connector housing belonging to the M23 PRO Signal series. It features a straight design with an M23 thread type and utilizes a screw locking mechanism for secure attachment. The housing is shielded, designed to maintain signal integrity in electromagnetic environments. It includes an FKM gasket for sealing. This component is strictly a housing and must be used in combination with compatible contact inserts.

Feature Summary

• Straight cable connector design with M23 thread
• Screw locking mechanism for secure connection
• Shielded construction for signal protection
• FKM gasket included for environmental sealing

Applications

• Industrial automation signal transmission
• Control cabinet wiring connections
• Sensor and actuator interface setups

Procurement Notes

Verify that the order specifies only the housing unit, as contacts are sold separately. Confirm compatibility with specific Phoenix Contact M23 PRO Signal contact inserts before integration. Ensure the application environment supports the material specifications of the FKM gasket. Check technical documentation for mating dimensions to guarantee proper assembly with corresponding receptacles or plugs.

Selection Notes

Select this housing when a straight, shielded M23 connection is required. The screw locking mechanism offers robust retention compared to bayonet styles. Consider the FKM gasket material for chemical resistance requirements. Ensure the system design accommodates the straight orientation and sufficient cable bending radius for the chosen insert configuration.

Part Context

This component is part of the Phoenix Contact M23 PRO Signal series, which provides modular connectivity solutions for industrial applications. The series emphasizes high-density signaling and reliable performance in demanding environments. The M23 form factor allows for multiple contact configurations within a compact footprint, supporting various signal types through interchangeable inserts.

Replacement Considerations

Direct substitutes include other Phoenix Contact M23 PRO Signal housings with identical straight, shielded, and screw-locking characteristics. Verify thread size and shielding continuity when considering alternatives from other manufacturers to ensure mechanical and electrical compatibility.
