Overview

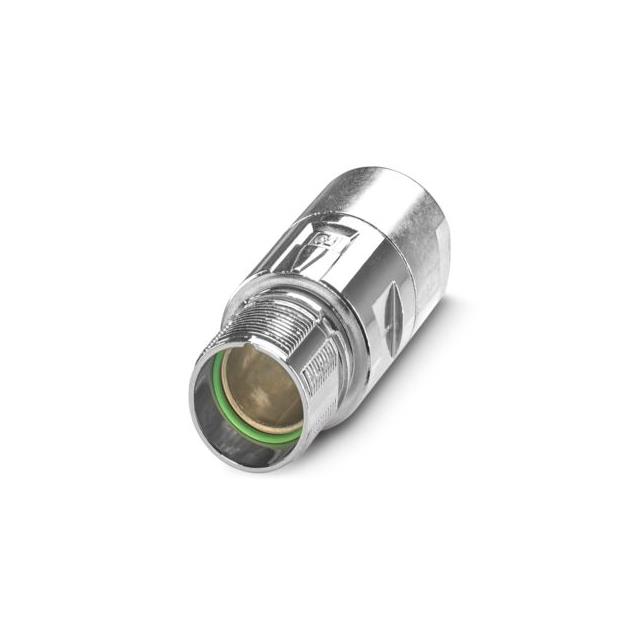

Phoenix Contact part number 1554108 is a coupler connector housing belonging to the M23 PRO Signal series. It features a straight body orientation and utilizes an M23 standard thread with an integrated ONECLICK locking system for secure attachment. The housing is designed for shielded applications, ensuring electromagnetic compatibility in industrial environments. Termination methods supported include both crimp and solder options, providing flexibility for various cable assembly requirements. This component serves as a critical interface element within circular connector systems.

Feature Summary

• Integrates ONECLICK locking system for rapid and secure connection engagement
• Designed for shielded signal transmission to maintain electromagnetic integrity
• Supports multiple termination methods including crimp and solder connections

Applications

• Industrial automation control panels
• Signal transmission interfaces in machinery
• Shielded circular connector assemblies

Procurement Notes

Verify that the specific application requires the M23 PRO Signal series compatibility. Confirm that the mating connector supports the ONECLICK locking mechanism. Ensure the chosen termination method (crimp or solder) aligns with available tooling and process capabilities. Check that shielding requirements are met by the complete assembly, not just the housing.

Selection Notes

Select this housing when a straight M23 connector with integrated locking is required. Consider the ONECLICK feature if frequent connection cycles are anticipated. Evaluate whether the shielded design meets the noise immunity needs of the signal lines. Verify that the physical space allows for the straight orientation and locking mechanism operation.

Part Context

This component is part of Phoenix Contact's M23 PRO Signal family, which focuses on robust signal connectivity. The M23 size offers a balance between compactness and pin count capacity. The PRO Signal designation indicates specialized features for sensitive signal applications compared to standard power variants.

Replacement Considerations

Direct substitutes must match the M23 standard dimensions and ONECLICK locking interface. Generic M23 housings without the ONECLICK feature are not compatible. Ensure any replacement maintains the same shielding configuration and termination type support.
