1554817

Overview

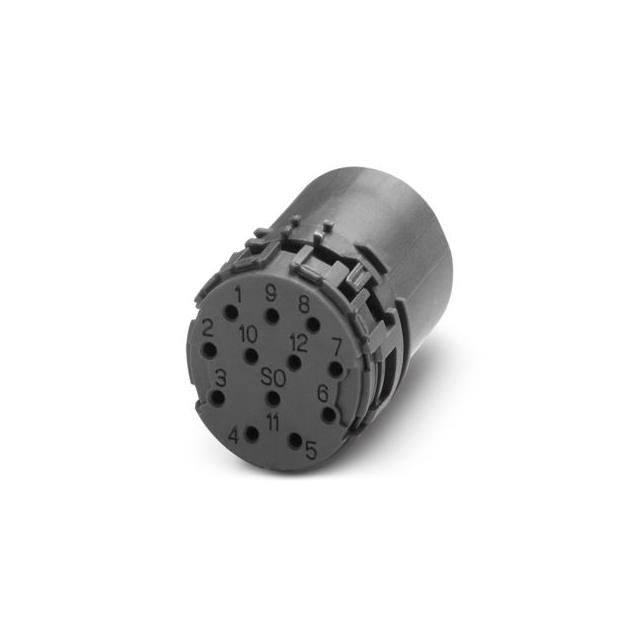

Phoenix Contact part number 1554817 is an M23 contact insert belonging to the M23 PRO series. It features a female socket crimp connection design with 12 positions. The component has an M23 thread type and a rated surge voltage of 2.5 kV. It is designed for use with Ø0.1 mm crimp pins, which must be ordered separately. The insulator material serves as the marking material.

Feature Summary

• Female socket crimp connection design
• M23 thread type compatibility
• 12-position configuration
• Rated surge voltage of 2.5 kV

Applications

• Industrial automation signal transmission
• Control cabinet wiring systems
• Sensor and actuator connections

Procurement Notes

Verify the specific M23 housing compatibility before procurement, as this item is a contact insert only. Confirm that separate ordering of compatible Ø0.1 mm crimp pins is included in the project scope. Check current availability status, as stock levels may vary by region. Ensure the M23 PRO series designation matches existing system requirements.

Selection Notes

Select this insert when a 12-position female crimp interface is required within an M23 housing framework. The 2.5 kV surge rating supports industrial environments. Verify wire gauge compatibility with the specified Ø0.1 mm pin requirement. Consider the M23 PRO series ecosystem for mating connectors and housings.

Part Context

This component is part of Phoenix Contact's M23 PRO series, designed for robust industrial connectivity. The M23 standard provides high-density connections in compact spaces. The 1554817 variant specifically addresses applications requiring multiple signal lines in a single connector interface.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Phoenix Contact technical support for cross-referencing alternatives if this specific insert is unavailable.
