1554822

Overview

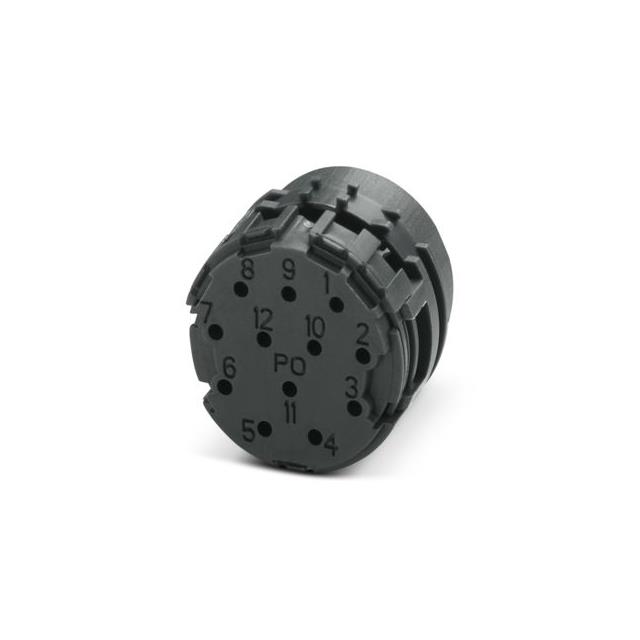

The Phoenix Contact 1554822 is an M23 contact insert belonging to the M23 PRO series. It features a male pin configuration with 12 positions. The component utilizes crimp connections for electrical mounting, ensuring secure signal transmission within circular connector systems.

Feature Summary

• M23 series compatibility
• Male pin contact type
• Crimp connection method

Applications

• Industrial automation control panels
• Sensor and actuator wiring
• Circular connector assembly

Procurement Notes

Verify the part number 1554822 against the manufacturer's official documentation to confirm it matches the M23-12P1N8A0000 specification. Ensure the required crimping tools are compatible with the specified contact size before procurement.

Selection Notes

Select this component when a 12-position male contact insert is required for M23 housings. Confirm that the mating environment supports crimped termination methods and that the housing material is compatible with the M23 PRO series design standards.

Part Context

This contact insert is part of the M23 PRO series from Phoenix Contact, designed for robust industrial applications. It serves as a critical internal component for assembling circular connectors, providing reliable electrical connectivity in demanding environments.

Replacement Considerations

Consult official Phoenix Contact substitution guides for verified equivalents. Generic M23 inserts may not match the specific mechanical or electrical tolerances of the M23 PRO series.
