1554824

Overview

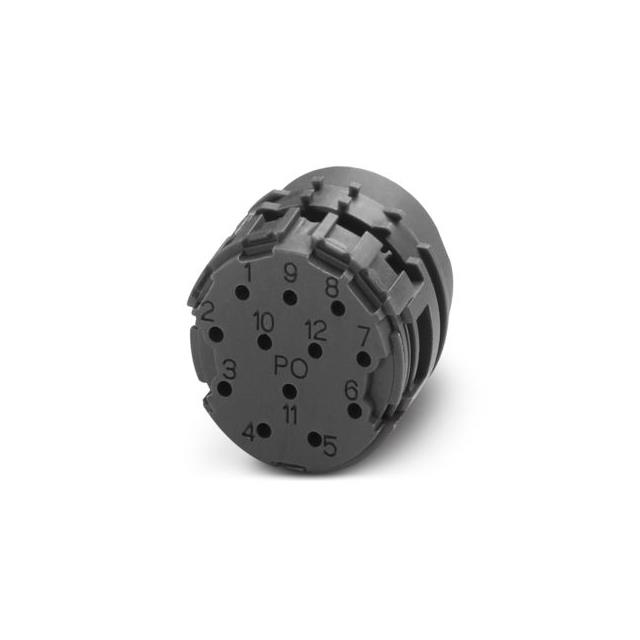

Phoenix Contact part number 1554824 is an M23 PRO series insert featuring a 12-position pin configuration with N coding. It utilizes crimp termination and PA 6.6 insulation. Electrical ratings include 8 A rated current, 150 V nominal voltage, and 2.5 kV surge withstand. The component supports overvoltage category III and pollution level 3. Mechanical durability is rated for 100 mating cycles. The single unit weighs approximately 1.51 g without packaging.

Feature Summary

• Supports signal transmission applications via dedicated pin contacts
• Features standardized M23 threading with specific N coding for orientation
• Utilizes PA 6.6 insulating material for electrical isolation

Applications

• Industrial signal wiring connections
• M23 connector assembly integration
• Control cabinet signal distribution

Procurement Notes

Verify the exact part number 1554824 against official Phoenix Contact documentation to confirm compatibility with your specific M23 housing requirements. Ensure that the required 0.1 mm crimp pins are ordered separately as they are not included with this insert component. Cross-reference the N coding designation to guarantee correct mechanical alignment within your assembly design.

Selection Notes

Select this insert when a 12-position signal connection is required within an M23 framework. The N coding must match the corresponding housing to ensure proper engagement. Verify that the application environment falls within overvoltage category III and pollution level 3 constraints. Confirm that the 8 A current rating aligns with the circuit load requirements.

Part Context

This component belongs to the M23 PRO product line designed for robust industrial connectivity. It functions as a replaceable or standalone insert element rather than a complete cable assembly. The design focuses on reliable signal transmission in demanding environments through standardized mechanical interfaces and defined electrical performance limits.

Replacement Considerations

No public substitute part numbers are documented for this specific insert configuration.
