1554829

Overview

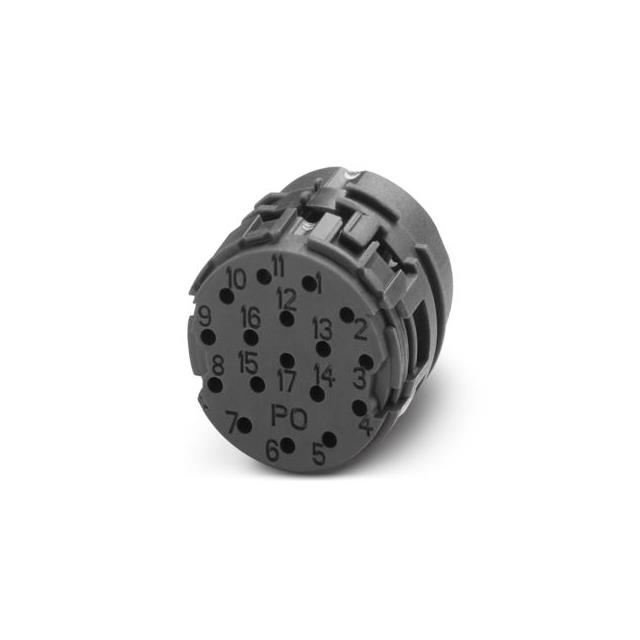

Phoenix Contact part number 1554829 is a contact insert belonging to the M23 PRO series. It features an M23 housing interface with 17 positions. The connection type utilizes pin crimp technology for conductor attachment. The internal article number is 1554829, and the GTIN code is 4067923034167. Coding at head 1 is designated as N. The component supports a minimum of 100 insertion cycles.

Feature Summary

• Designed for M23 PRO series connectors with 17 positions
• Utilizes pin crimp connection method for conductors
• Features coding designation N at head 1

Applications

• Industrial data transmission systems
• Signal and power connections in automation equipment
• Heavy-duty connector assemblies requiring modular inserts

Procurement Notes

Verify the specific ordering suffix against official Phoenix Contact documentation to ensure correct coding and contact configuration. Confirm that the crimp tooling matches the pin specifications. Check for updated datasheets regarding environmental ratings and mating cycle durability before finalizing procurement orders.

Selection Notes

Select this insert when integrating into M23 housings requiring 17 signal or power paths. Ensure the application environment aligns with the mechanical durability limits specified for the M23 PRO series. Verify compatibility with existing cable preparation tools for crimping processes.

Part Context

This component is part of the broader Phoenix Contact M23 PRO product family, which provides robust connectivity solutions for industrial environments. The M23 series is widely used for high-density data and power transmission where reliable performance under mechanical stress is required.

Replacement Considerations

Consult official Phoenix Contact substitution guides for compatible alternatives. Ensure any substitute maintains the same 17-position count, M23 interface, and crimp connection type to preserve mechanical and electrical integrity.
