1556146

Overview

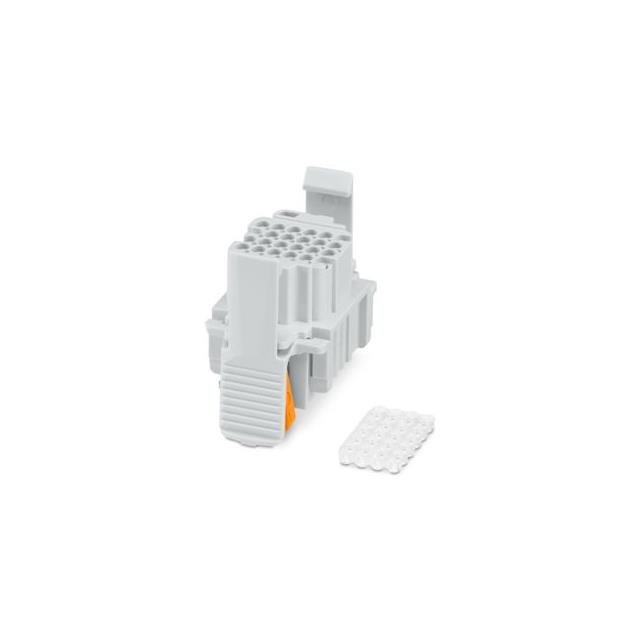

Phoenix Contact part number 1556146 is a Heavy Duty Power Connector Insert, specifically the HC-CME-DD-23-F model. It is a female connector insert designed for crimp contacts and includes 23+ PE (Protective Earth) positions. The component supports single connections per position and is rated for a current of 10A. It operates within a temperature range of -40°C to 125°C. The housing is constructed from gray polycarbonate (PC). This insert is supplied without contacts and is intended for use in heavy-duty power applications requiring reliable electrical interconnections.

Feature Summary

• Designed as a female conductor connector insert with dedicated protective earth positions
• Constructed from durable gray polycarbonate material for environmental resistance
• Supports crimp contact execution for secure electrical termination
• Rated for 10A current carrying capacity in heavy-duty power applications

Applications

• Industrial production facilities automation systems
• Renewable energy infrastructure connections
• Complex device power distribution networks
• Sector coupling power and data flow control

Procurement Notes

Verify that the specific application requires a female insert without pre-installed contacts, as this unit is sold separately from the mating contacts. Confirm that the crimping tooling matches the required contact specifications for the 23+ PE positions. Ensure the operating environment falls within the specified -40°C to 125°C temperature range. Check compatibility with the corresponding Phoenix Contact heavy-duty housing system before ordering.

Selection Notes

Select this module when a heavy-duty power solution requires a female interface with integrated grounding capabilities. The HC-CME-DD-23-F variant is appropriate for applications needing 23 signal/power positions plus protective earth. Consider the polycarbonate housing material for general industrial environments. Ensure the system design accommodates the crimp contact installation process rather than solder or screw termination methods.

Part Context

This component belongs to the Phoenix Contact HEAVYCON® D series, which provides robust connectivity solutions for electrification and automation sectors. The series is designed for connecting, distributing, and controlling power flows in demanding industrial settings. Phoenix Contact manufactures these components to support sustainable applications with efficient processes across global markets.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
