1556150

Overview

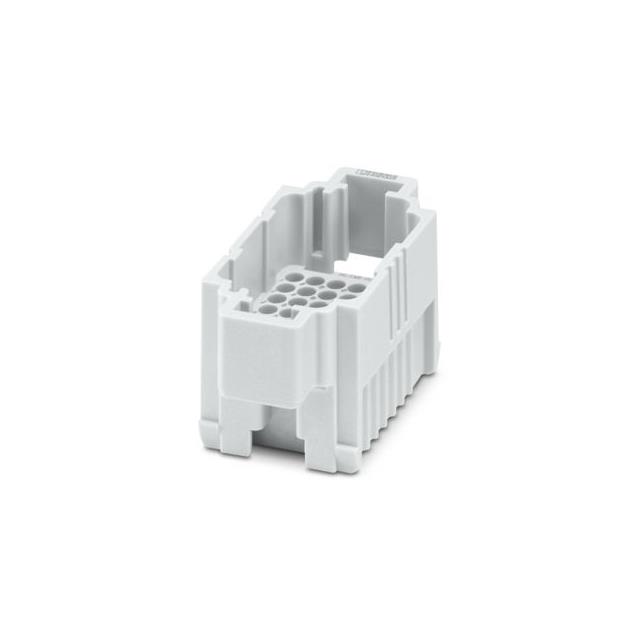

Phoenix Contact part number 1556150 is a conductor connector, model HC-CME-DD-41-M. It features 41+PE positions with one connection per position. The component utilizes a crimp connection type and pin configuration. Rated voltage is 250 V with a current rating of 10 A. Minimum wire size is 0.14 mm². Operating temperature range is -40°C to 125°C. Housing material is Polycarbonate (PC). Contact material is Copper Alloy with Silver plating. Color is Gray.

Feature Summary

• Provides high-density connectivity for control cabinet applications requiring numerous connections.
• Utilizes crimp connection technology for secure conductor attachment.
• Constructed with durable Polycarbonate housing and silver-plated copper alloy contacts.

Applications

• Control cabinet wiring systems
• Industrial automation signal distribution
• Heavy duty power connector inserts

Procurement Notes

Verify the specific product code against official Phoenix Contact documentation to confirm availability status. Note that some sources indicate this product may be discontinued. Ensure compatibility with corresponding heavy-duty connector housings before procurement. Check compliance requirements against project specifications.

Selection Notes

Select this component when high connection density is required within limited space constraints. The 41-position layout supports extensive signal routing. Verify that the application environment falls within the specified operating temperature range. Confirm that the wire gauge meets the minimum size requirement for reliable crimping performance.

Part Context

This conductor connector belongs to the Heavy Duty Power Connector Insert series by Phoenix Contact. It is designed to interface with compatible heavy-duty connector housings. The module serves as an internal component for establishing multiple electrical pathways in industrial settings.

Replacement Considerations

Public sources indicate this product is discontinued. Consult official Phoenix Contact catalogs for alternative conductor connectors with similar position counts and current ratings. Verify mechanical fit and electrical specifications before substitution.

FAQ

What is the contact plating material?

The contacts are made of Copper Alloy with Silver plating.

Is this component RoHS compliant?

Some distributor listings indicate that this product is NOT RoHS Compliant.
