1556154

Overview

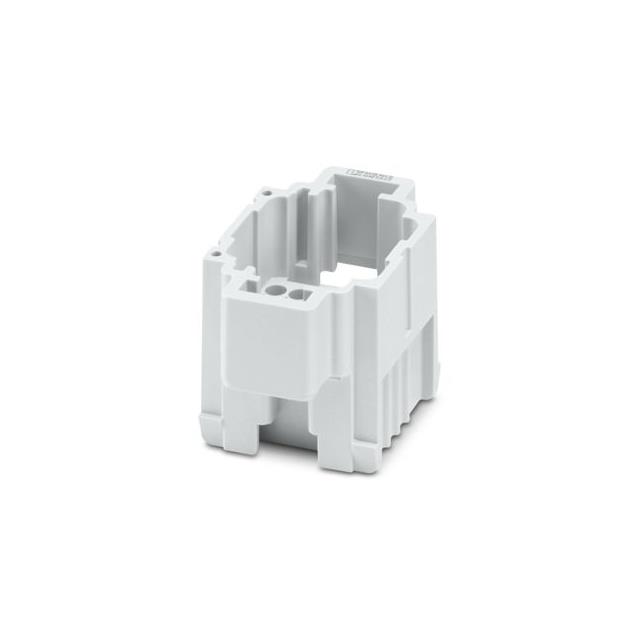

Phoenix Contact part number 1556154 is a wire connector designed for control cabinet connections. It features a pin plug configuration with a crimping connection method. The component supports a wire cross-section range of 0.14 mm² to 2.5 mm² and has a rated voltage of 250 V with a current rating of 10 A. It accommodates 23 positions plus protective earth (PE). The product complies with relevant industrial standards for electrical connectivity.

Feature Summary

• Utilizes a crimping connection technology for secure wire termination
• Designed specifically for integration within control cabinet environments
• Provides a pin plug interface for standardized electrical connections

Applications

• Control cabinet wiring assemblies
• Industrial equipment signal distribution
• Machine tool electrical interconnections

Procurement Notes

Verify the specific technical requirements against the official Phoenix Contact datasheet for part 1556154 before procurement. Confirm that the application environment matches the rated voltage and current specifications. Ensure compatibility with the intended wire gauge range of 0.14 mm² to 2.5 mm². Cross-reference the certification marks such as cULus or RoHS if required by local regulations. Validate the physical dimensions and pin count against the system design constraints.

Selection Notes

Select this component when a reliable crimped connection is required for control cabinet applications. It is suitable for systems needing 23 signal positions plus ground. Consider the 2.5 mm² maximum wire capacity for load requirements. Ensure the installation method aligns with the pin plug design. Verify environmental conditions do not exceed the rated voltage limits.

Part Context

This component belongs to the Phoenix Contact connector portfolio, which offers solutions for industrial and semi-industrial applications. The series includes preassembled cables and connectors designed for robust performance in demanding environments. Phoenix Contact provides comprehensive connectivity options for data, signal, and power transmission across various industrial sectors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
