1556182

Overview

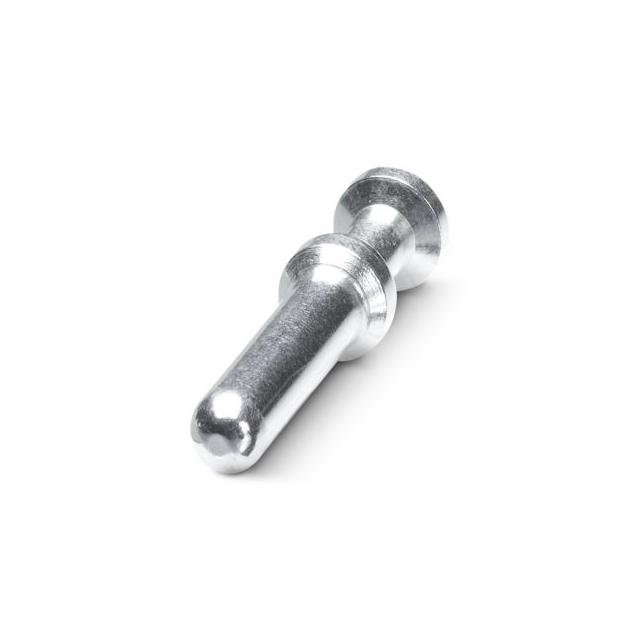

Phoenix Contact part number 1556182 is a crimp contact pin belonging to the HC-M-03 series. It features a turned contact design with a diameter of 4 mm and is constructed from copper alloy. The component supports a connection cross-section of 10 mm² (AWG 8) and has a rated current capacity of 40 A.

Feature Summary

• Turned contact geometry for enhanced connection reliability
• Copper alloy construction for conductivity
• Designed for heavy-duty connector systems

Applications

• Heavy-duty industrial connector assemblies
• High-current power distribution systems
• Industrial machinery wiring

Procurement Notes

Verify that the specific ordering suffix matches the required contact surface finish, as variations exist within the product line. Confirm compatibility with the corresponding housing series HC-M-03 before procurement. Ensure the application environment aligns with the material specifications provided in the official datasheet.

Selection Notes

Select this component when a 40 A rated crimp pin is required for heavy-duty applications. The 10 mm² wire capacity suits robust industrial cabling. Verify that the system voltage and environmental conditions are compatible with the copper alloy material properties.

Part Context

This crimp contact is part of Phoenix Contact's HC-M-03 series, designed for heavy-duty connectivity solutions. It serves as a male pin contact intended for mating with corresponding female contacts in industrial connector housings, ensuring secure electrical connections in demanding environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the source data.
