1556198

Overview

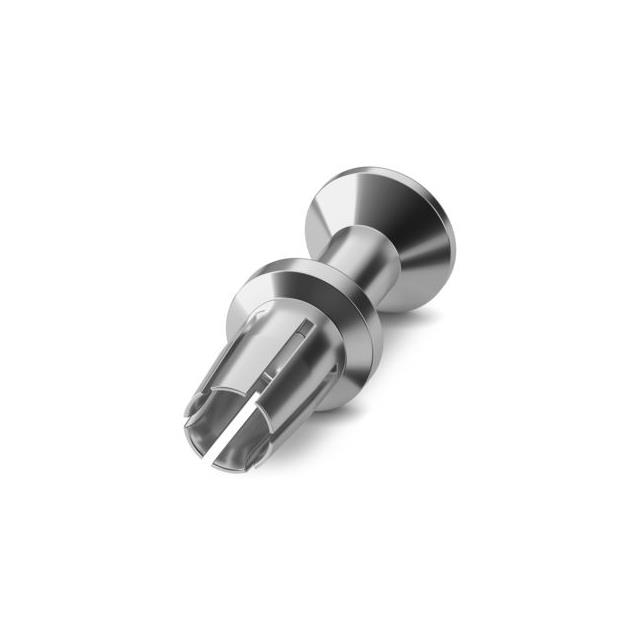

Phoenix Contact part number 1556198 is a crimp contact socket belonging to the HC-M--25 series. It features a turned design with a contact diameter of 6 mm and is constructed from lead-free copper alloy. The component supports a rated current of 70 A and accommodates a connection cross-section of 10 mm² (AWG 8). It operates at an ambient temperature up to 125 °C.

Feature Summary

• Turned socket construction for reliable electrical connection
• Lead-free copper alloy material composition
• High current capacity suitable for heavy-duty applications

Applications

• Heavy duty connector systems
• Industrial automation equipment
• Process control engineering installations

Procurement Notes

Verify that the specific order matches Phoenix Contact part number 1556198 and designation CK6,0-ED-10,00F AG 500. Confirm the package quantity aligns with supplier specifications, typically 500 units per package. Ensure compatibility with the HC-M--25 series housing before procurement.

Selection Notes

Select this component when a 6 mm turned socket contact is required for heavy-duty connections. It is appropriate for circuits requiring 70 A rating and 10 mm² wire capacity. Verify that the application environment does not exceed the 125 °C operating temperature limit.

Part Context

This component is part of the Phoenix Contact industrial connector portfolio, specifically designed for electric engineering and automation sectors. It serves as a critical interface element within the HC-M--25 series, ensuring robust connectivity in demanding industrial environments.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific component configuration.

FAQ

What is the maximum operating temperature for this crimp contact?

The component has a specified ambient temperature rating of 125 °C.

Is the contact material lead-free?

Yes, the contact is made from a lead-free copper alloy.
