1556213

Overview

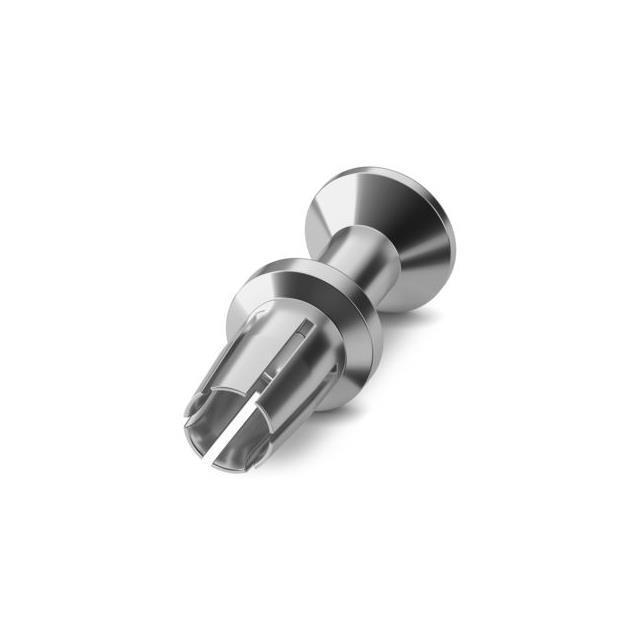

Phoenix Contact part number 1556213 is a crimp contact belonging to the HC-M--25 series. It is a socket-type, turned female connector with a contact diameter of 6 mm. The component features a silver-plated finish on the contact surface and is constructed from copper alloy. It supports a connection cross-section of 10 mm² (AWG 8) and has a rated current capacity of 70 A.

Feature Summary

• Silver-plated contact surface for corrosion resistance
• Turned construction method for precision
• Copper alloy material composition

Applications

• Heavy duty connector assemblies
• Industrial power distribution systems
• Machine building wiring

Procurement Notes

Verify that the specific order matches Phoenix Contact part number 1556213 and designation CK6,0-ED-10,00F AG. Confirm the silver-plated finish and 10 mm² cross-section requirement aligns with system specifications. Ensure compatibility with the HC-M--25 series housing components before procurement.

Selection Notes

Select this component when a 70 A rated, 10 mm² crimp socket is required for heavy-duty applications. The 6 mm contact diameter and turned design suit high-current industrial environments. Verify housing compatibility within the HC-M--25 series to ensure proper mechanical fit and electrical performance.

Part Context

This component is part of the Phoenix Contact HC-M--25 series of heavy-duty connector contacts. It serves as a female socket contact designed for crimping wires up to 10 mm². The series is engineered for robust industrial connections requiring high current carrying capacity and reliable mechanical stability in demanding operational conditions.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
