1559518

Overview

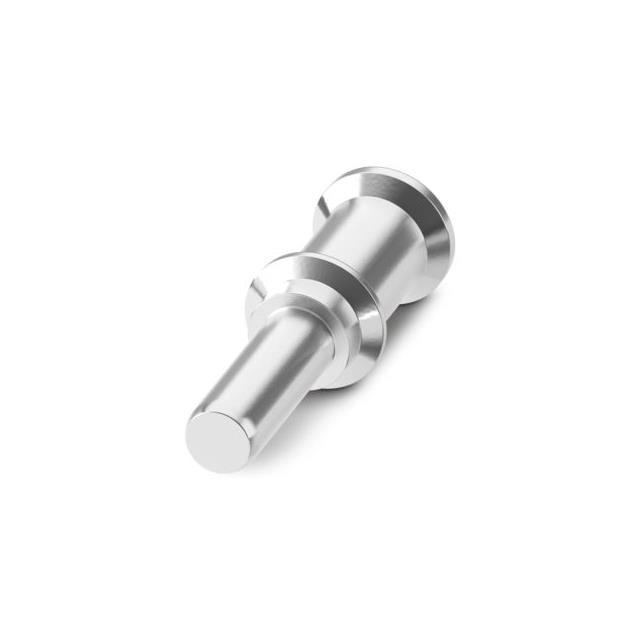

Phoenix Contact part number 1559518 is a crimp contact pin belonging to the HC-M--25 and HC-DCC4-I-CT-HW series. It features a turned contact design with a 6 mm diameter. The component supports a rated current of 100 A and connects conductors with a cross-section of 6 mm². The core material is copper alloy, plated with silver, and it operates within an ambient temperature range up to 125 °C.

Feature Summary

• Turned contact pin design for secure mechanical connection
• Silver-plated copper alloy core ensuring conductivity
• Compatible with heavy-duty connector systems

Applications

• Heavy-duty industrial connector assemblies
• High-current power distribution systems
• Industrial control cabinet wiring

Procurement Notes

Verify that the specific order matches Phoenix Contact part number 1559518 and designation CK6,0-ED-6,00M PE DCC AG 100. Confirm compatibility with HC-M--25 series housings. Ensure the required quantity aligns with packaging specifications, as units are often supplied in packs of 100. Cross-reference technical drawings for strip length requirements of 15.5 mm before procurement.

Selection Notes

Select this component when a 6 mm² conductor interface is required for heavy-duty applications. The 100 A rating dictates suitability for high-load circuits. Verify housing compatibility with the HC-M--25 series. Consider the 125 °C thermal limit for environmental constraints. The silver plating offers corrosion resistance suitable for industrial environments.

Part Context

This part is a male crimp contact designed for Phoenix Contact's heavy-duty connector ecosystem. It serves as a critical interconnect element within modular housing systems. The component integrates into larger assembly structures to facilitate reliable electrical transmission in demanding industrial settings.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific component configuration.

FAQ

What is the maximum operating temperature for this contact?

The component supports an ambient temperature of up to 125 °C.

What is the required wire stripping length?

The specified strip length for the conductor is 15.5 mm.
