Overview

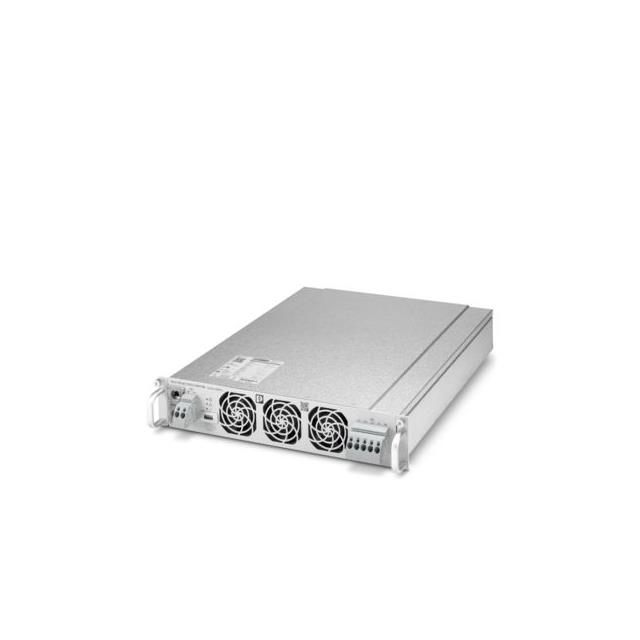

Phoenix Contact part number 1560712 is the TRIO-HP/3AC/1KDC/20KW/BI, a high-power bidirectional AC/DC power supply module designed for industrial rack mounting. It delivers a maximum output power of 20 kW with three independent outputs: 380 V AC, 480 V AC, and 1 kV DC. In AC/DC mode, it accepts a three-phase input voltage range of 260 V AC to 530 V AC with an input current up to 38 A per phase. In DC/AC mode, it operates with a DC input range of 200 V DC to 1000 V DC, supporting an input current up to 73 A. The unit features plug-in connections and CAN bus integration.

Feature Summary

• Bidirectional power conversion capability allowing operation in both AC/DC and DC/AC modes
• Modular design optimized for battery storage applications with scalable output up to 960 kW when combined
• Integrated CAN bus interface for system communication and control
• High efficiency performance with power factor greater than 0.99 and total harmonic distortion less than 5 percent

Applications

• Battery energy storage system charging and discharging
• Industrial power grid interfacing
• Large-scale renewable energy integration

Procurement Notes

Verify the specific configuration requirements against the official datasheet before procurement. Confirm that the installation environment supports the required thermal management for a 20 kW module. Ensure compatibility with the 19-inch rack mounting structure and verify that the control system supports the integrated CAN bus protocol for proper system integration and monitoring.

Selection Notes

Select this component only if the application requires bidirectional power flow between AC grids and DC storage systems. The 20 kW output capacity and triple output configuration are suitable for high-power industrial setups. Consider the physical dimensions of 520 mm by 483 mm by 89 mm for space planning. Verify that the input voltage ranges match the local power grid specifications or DC source characteristics.

Part Context

This module belongs to the Phoenix Contact TRIO POWER series, which is engineered for efficient and secure power electronics systems. The series is characterized by its modular scalability, allowing multiple units to be combined to achieve significantly higher total output powers. It is specifically designed for robust industrial environments requiring reliable power conversion and storage management solutions.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct equivalents or updated series replacements.
