1568962

Overview

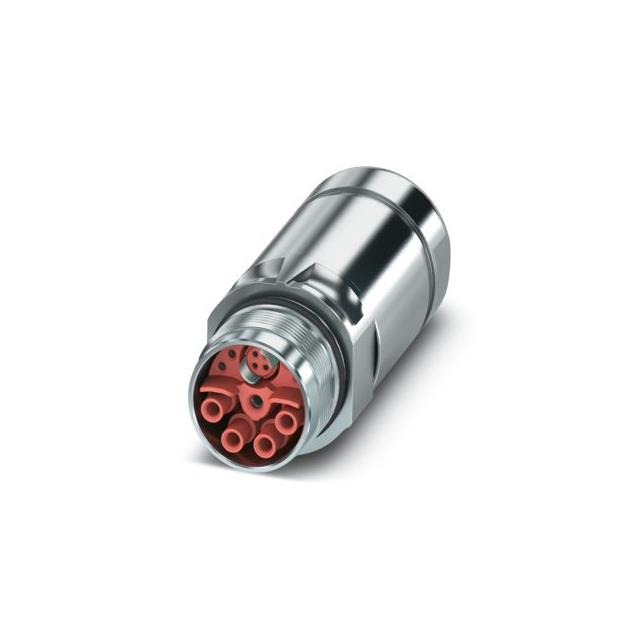

Phoenix Contact part number 1568962 is an M23 coupler connector belonging to the SH series. It features a straight long design with shielding for standard and SPEEDCON interlock applications. The component has six positions configured as 6+4+4+PE, including a six-position data element. It is classified as a circular connector assembly suitable for hybrid use.

Feature Summary

• Straight long shielded construction
• Compatible with standard and SPEEDCON interlock systems
• Six-position data element configuration

Applications

• Hybrid application environments
• Standard interlock connections
• SPEEDCON interlock connections

Procurement Notes

Verify the specific pin count and contact arrangement against official Phoenix Contact documentation before procurement. Confirm compatibility with SPEEDCON interlock requirements. Ensure the straight long housing style matches the mechanical constraints of the installation site. Check for updated compliance certifications.

Selection Notes

Select this model when a shielded M23 coupler is required for hybrid applications. The straight long form factor suits space-constrained panels. Verify that the six-position data element meets signal routing needs. Ensure the system supports standard or SPEEDCON interlock protocols.

Part Context

This component belongs to the Phoenix Contact SH series of M23 coupler connectors. The series provides shielded solutions for industrial automation. The straight long design distinguishes it from angled variants. It serves as a critical interface in complex wiring architectures requiring robust signal integrity.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material.
