Overview

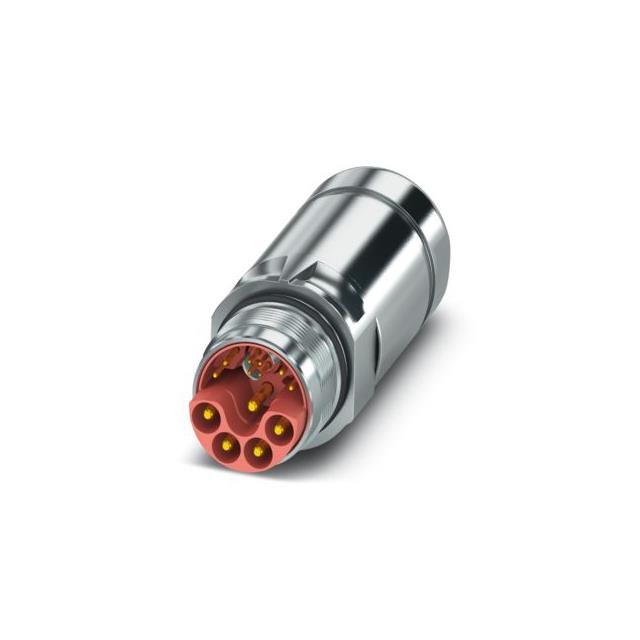

Phoenix Contact part number 1568964 is an M23 coupler connector belonging to the SH series. It features a straight long design with shielding for standard and SPEEDCON interlock systems. The connector has 15 positions, configured as 6+4+4 poles plus PE. It utilizes crimped electrical mounting. The gross weight is 119.9 g.

Feature Summary

• Straight long housing design
• Shielded construction
• Compatible with standard and SPEEDCON locking mechanisms

Applications

• Plant engineering
• Controller engineering
• Electrical device engineering

Procurement Notes

Verify the specific mating requirements against the SPEEDCON locking system compatibility before procurement. Confirm that the straight long housing geometry fits the available panel or rail space in the intended assembly. Ensure the crimping tooling matches the terminal specifications for the 15-position configuration to guarantee reliable electrical connections during installation.

Selection Notes

Select this component when a shielded M23 solution is required for high-density signal transmission in industrial environments. The 15-pin layout supports complex data and power combinations. Consider the straight form factor for applications where axial space is constrained but radial clearance allows for the long housing profile.

Part Context

This coupler connector is part of Phoenix Contact's SH series, designed for robust industrial connectivity. The M23 interface provides durability for demanding settings. The inclusion of shielding helps mitigate electromagnetic interference, ensuring signal integrity in electrically noisy plant environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
