1568966

Overview

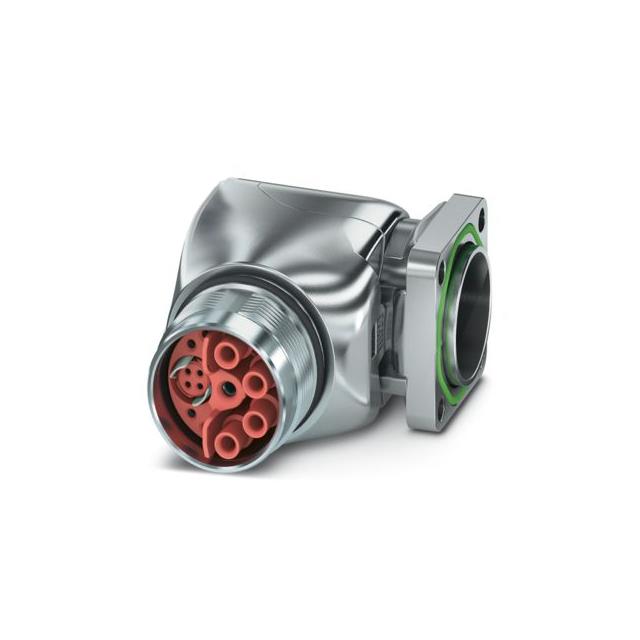

Phoenix Contact part number 1568966 is an M23 device connector from the SH series, designed for front mounting. It features a hybrid configuration with 15 positions arranged in a 6+4+4+PE connection profile. The connector includes a 6-position data element and supports standard and SPEEDCON interlock mechanisms. It is shielded to ensure signal integrity and is constructed with an angled rotatable design for flexible installation.

Feature Summary

• Hybrid connectivity supporting simultaneous data and power transmission
• Shielded construction for electromagnetic interference protection
• Angled rotatable housing for optimized cable routing
• Front mounting design for panel integration

Applications

• Industrial automation control systems
• Sensor and actuator network connections
• Hybrid signal and power distribution panels

Procurement Notes

Verify the complete manufacturer part number against official Phoenix Contact documentation to confirm compatibility with specific mating connectors and interlock requirements. Ensure that the selected variant matches the required shielding and mounting specifications for the intended application environment.

Selection Notes

Select this component when a hybrid M23 solution is required for front panel mounting. Consider the angled rotatable feature for space-constrained installations. Verify that the 6+4+4+PE pinout aligns with the system's data and power distribution needs before procurement.

Part Context

This device connector belongs to the SH series of M23 circular connectors. It is engineered for robust industrial environments requiring reliable hybrid connectivity. The product integrates data and power lines within a single compact housing, facilitating efficient cabling solutions for complex automation tasks.

Replacement Considerations

Consult official Phoenix Contact substitution guides for verified equivalent parts. Cross-reference pin configurations and mechanical dimensions to ensure functional compatibility without modifying existing panel designs.
